ZK-F302 Cool Volume Indicator Bluetooth Audio Power Amplifier Board Module TPA3118 Stereo 30W+30W

ZK-F302 Cool Volume Indicator Bluetooth Audio Power Amplifier Board Module TPA3118 Stereo 30W+30W
>>>APP:Click here to open<<<
Feature:
1. Excellent quality:high quality material, safe and durable.
2. Stable performance:with better noise performance, excellent output drive capability and relatively high small signal bandwidth, large power supply voltage range.
3. High fidelity:When used as an audio amplifier, the tone is warm and the fidelity is high.
4. Wide range of uses:suitable for high quality and professional audio equipment, instruments, control circuits and telephone channel amplifiers.

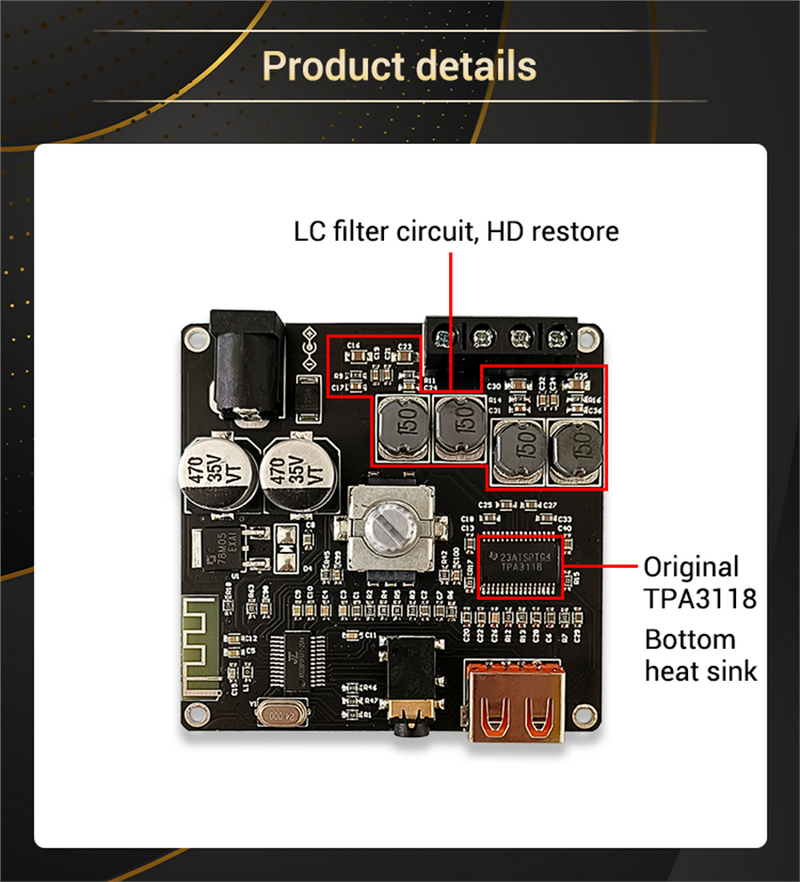

5. This power amplifier module samples TPA3118 digital power amplifier chips, It has the characteristics of small size, high efficiency, high power and small heat.
Specification:
Model:ZK-F302
size:60 x 60 x 30MM
Material:ABS
colour:black
Product parameters:
Brand:Wuzhi Audio
Model:ZK-F302
Name:2.0 channel 30Wx2 stereo BT audio power amplifier
Amplifier chip:TPA3118
BT version:5.1
Audio input:BT+AUX+USB disk+USB sound card
Audio output:Left channel 30W + right channel 30W
Adaptive power supply:8-24V, >=3A (Do not connect to AC)
Adaptive speaker:10-50W, 4-8??
Volume adjustment:multi-function knob, 360 degree stepless tuning, with volume level indication.
Click:play/pause Double click:mode switch (BT, USB flash disk, AUX)
Long press for 1 second:on/off Rotate:adjust volume
Protection mechanism:Over temperature, over-current, short circuit, anti-static protection
Support Wuzhi Audio APP. Modify BT name, password setting, prompt tone volume adjustment, on/off prompt tone, lullaby, sound effect selection+custom sound effect, USB flash disk playlist,volume indicator brightness adjustment.
Size:60x60x30mm
Product weight:Net weight 52g,Weight with package 87g
Package includes:
1 x Audio Amplifier Board Module
1 x Screwdriver
1 x Terminal
