XY6020 CNC Adjustable DC Stabilized Power Supply Constant Voltage and Current Maintenance 20A/1200W Step-down Module

XY6020 CNC Adjustable DC Stabilized Power Supply Constant Voltage and Current Maintenance 20A/1200W Step-down Module
Feature:
1. Output 60V/20A/1200W, high current, high power
2. Cost-effective regulated power supply
3. Support mobile phone APP, computer host computer, remote control control, support WeChat notification, cloud recording, remote firmware upgrade, theme color free matching and other functions, is an intelligent and practical CNC regulated power supply

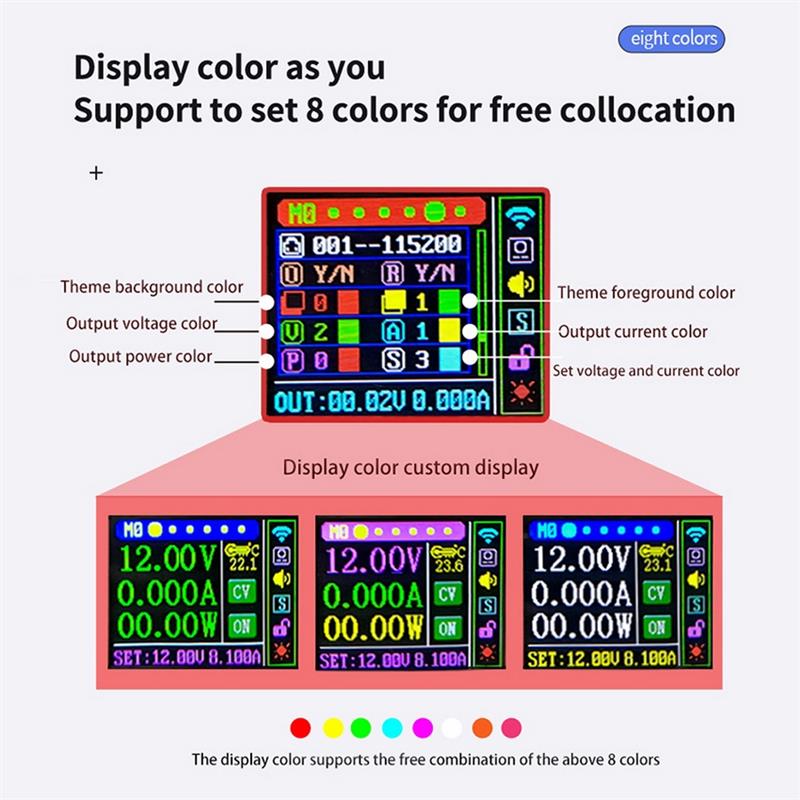

4. The display color can be matched freely, and 8 colors can be freely matched
5. 1.8-inch large-screen color liquid crystal display with full viewing angle, small size, simple operation, convenient and fast
Specification:
Product Model:XY6020/XY6020-W (optional)
Input voltage range:6-70.00V
Output voltage range:0-60.00V
Output current range:0-20.00A
Output power range:0-1200W
Input voltage measurement resolution:0.01V
Output voltage setting measurement resolution:0.01V
Current setting measurement resolution:0.01A
Input voltage measurement accuracy:??(1%+5 digits)
Output voltage setting and measurement accuracy:??(0.4%+1 word)
Output current setting and measurement accuracy:??(0.5%+3 digits)
Typical output ripple:100mv VPP
Product working temperature range:-10??–40??
Capacity measurement range:0-99999Ah
Energy measurement range:0-99999Wh
Capacity and energy statistical error:??2%
Running time measurement range:0-1000h
Maximum output voltage:(input voltage??1.1)-2
Cooling fan on:current>2A power>50W temperature>50??
After the cooling fan is turned on, it is turned off:current <1.5A power <45W temperature <45??
Over temperature protection:default 110??
Screen brightness setting:0-5 in total of 6 levels
Display screen:1.8 inch color LCD screen
Product weight:253g/256g
Product size:125MM*55MM*35MM
Package includes:
XY6020-W
1xPower Module
1xremote control
1xTemperature sensing line
1xSerial cable
1xWiFi communication module
XY6020
1xPower Module
1xremote control
1xTemperature sensing line
1xSerial cable
