Radiomaster TX12 MK II 2.4GHz 16CH Hall Gimbals CC2500/ELRS Radio Controller Support EdgeTX/OpenTX Updated MCU STM32F407 RC Radio Transmitter for FPV RC Drone

Radiomaster TX12 MK II 2.4GHz 16CH Hall Gimbals CC2500/ELRS Radio Controller Support EdgeTX/OpenTX Updated MCU STM32F407 RC Radio Transmitter for FPV RC Drone
Radiomaster TX12 MK II 2.4GHz 16CH Hall Gimbals CC2500/ELRS Radio Controller Support EdgeTX/OpenTX Updated MCU STM32F407 RC Radio Transmitter for FPV RC Drone
The Mighty, Mini TX12MKII radio has arrived!
Many years ago, RadioMaster set out to create the very best compact radio in its class. The TX12 has become the go-to product for pilots who seek a powerful, dependable, and endlessly upgradable open-source radio in a small form factor.
Working with the R/C community and open-source partners, RadioMaster proudly presents the TX12 MKII, a class-leading compact radio, with updated ergonomics, hardware, and software.

Description:
Brand:Radiomaster
Item:TX12 MK II Radio
Frequency:2.400GHZ-2.480GHZ
RF Chip:ExpressLRS (ELRS)/CC2500 MPM (Optional)
Working Current:320mA@8.4V
Voltage Range:6.6-8.4v DC
Range:> 2km (depending on receiver)
Radio Firmware:ELRS Version:EdgeTX (Transmitter) / ExpressLRS (RF module), CC2500 Verison:EdgeTX (Transmitter) / MPM (RF module)
Channels:Up to 16 (depending on the receiver)
Display:128*64 Monochrome LCD display
Gimbal:High precision hall gimbals
External module:JR/FrSKY/Crossfire compatible
Upgrade Method:USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software
USB Charging:QC3 USB-C
SD Card:Included
Weight:363g
Size:170*159*108mm
Features:
* Added internal ExpressLRS module support.
* Updated main board design from STM32F207 to STM32F407.
* Improved USB-C QC 3.0 Charging.
* Precision hall-effect gimbals as standard.
* EdgeTX operating system installed from the factory.
* Updated rear case with comfortable grips.
* Improved S1 / S2 slider grip.
* SD Card included.
* Provide M1 and M2 modes.
EdgeTX Operating System
Preinstalled with EdgeTX, the RadioMaster TX12 MKII has cutting-edge software that is constantly evolving and improving. RadioMaster works closely with the EdgeTX team to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX, ensuring the concepts of open standards are carried forward.

Updated MCU STM32F407
We have upgraded the main processor from STM32F207 to STM32F407.

New Hall Gimbals
With Hall Gimbals, the same chipset as the AG01, optimized hall sensor circuitry, improves center point positioning and temperature stability.

Support USB Simulator

Improved USB-C QC 3.0 Charging

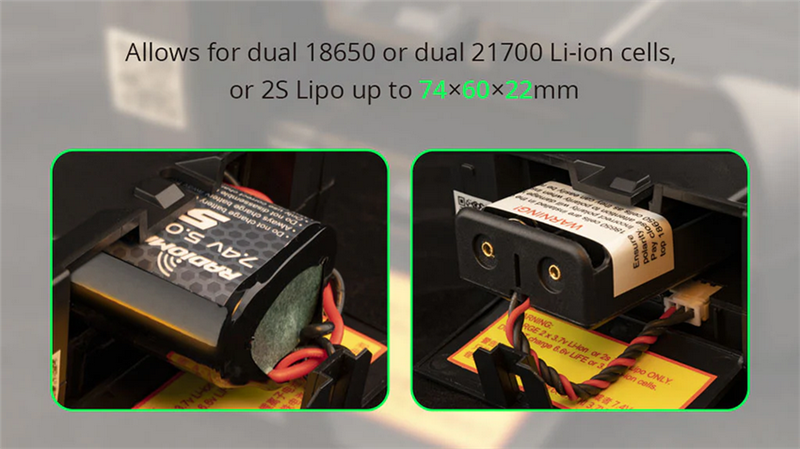

Big Battery Bay
Allows for dual 18650 or dual 21700 Li-ion cells, or 2S Lipo up to 74?G60?G22mm.

Expresslrs BLE JOYSTICK MODE
Allows for Bluetooth connection to PCs, tablets and phones with BLUETOOTH function to play simulators and games.
* ELRS version only.

Upgraded Design

Radio Overview

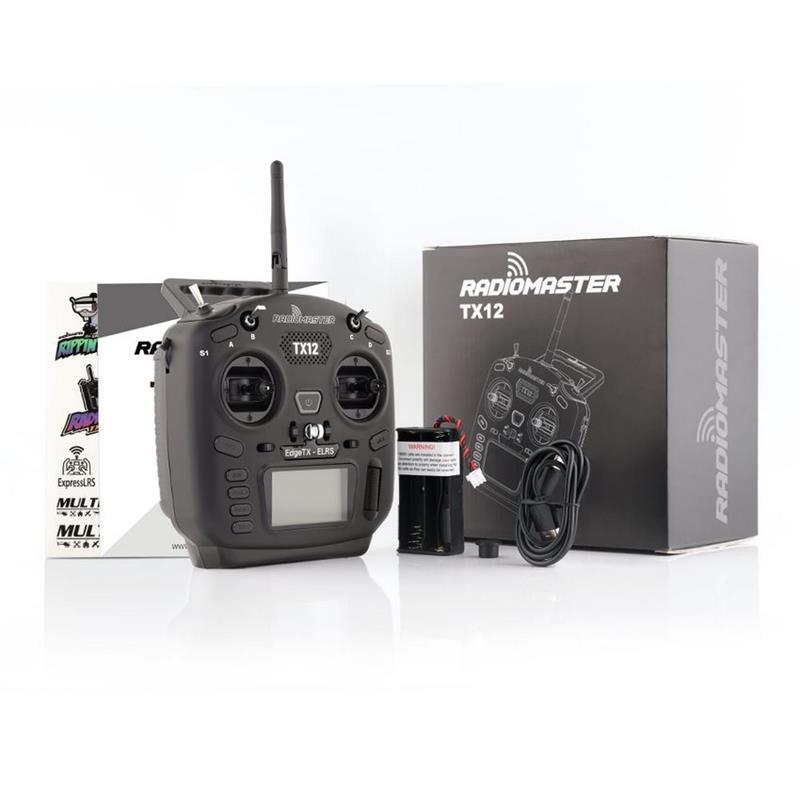

Package Included:
1 * TX12 Mark II Radio Controller ELRS or CC2500 Version (Optional)
1 * Antenna
1 * USB-C Cable
1 * Quick Start Guide
1 * Sticker
