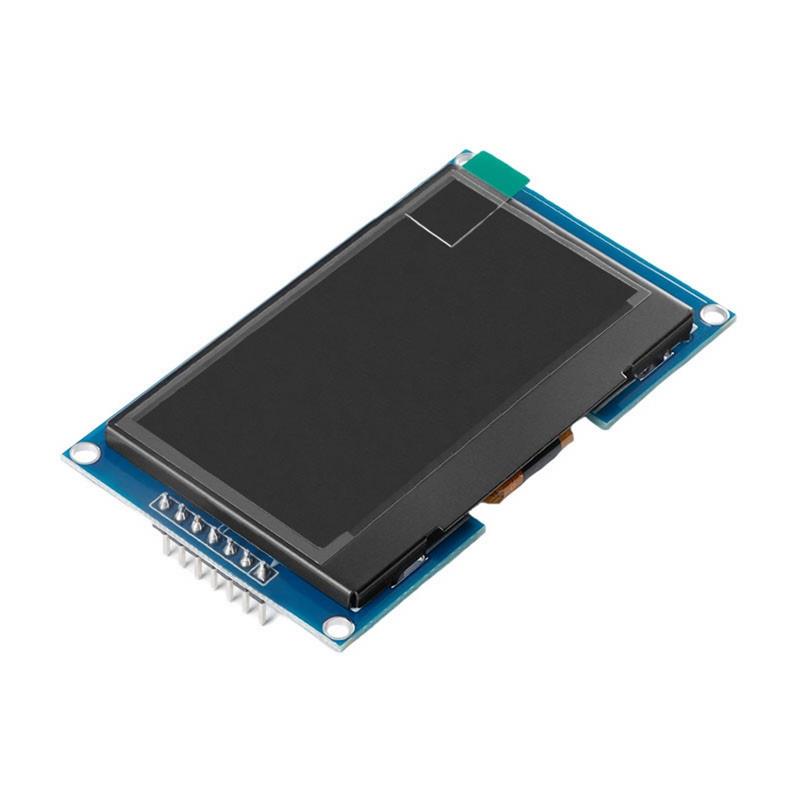

2.42 inch 7PIN OLED Display LCD Screen Module Resolution 128*64 SPI/IIC Interface SSD1309 Driver
Feature:
Driver chip SSD1309
Support interface IIC/SPI
Resolution 128??64
Display size 2.42 inches
Display color:white/blue/yellow/green (optional)
Module size 71??43.5 (mm)
Glass size 60.5??37.00?? (mm)
Display area 55.02??27.49 (mm)
Drive voltage 3.3-5V
Number of pins 7PIN
Viewing angle >160??
Working temperature -40??~70??
Storage temperature -40??~80??
SPI Interface Definition:
1. GND – Power Ground
2. VDD – Power Supply Positive (2.8-5.5V)
3. SCK – Clock Line
4. SDA – Data Line
5. RES – Reset Line
6. DC – Data/Command
7. CS – Chip Select
Package includes:
1 x OLED screen
Additional information
| Weight | 0.015 kg |
|---|---|
| Color: No selection | Blue, Green, White, Yellow |
