Wnew Woodworking Heavy Duty Router Lift with Aluminium Router Table Insert Plate Woodworking Tools
Upgrade version ID:1978653
Reducing Ring for Sale:ID 1963502
Description/span>
Wnew Woodworking Heavy Duty Router Lift with Aluminium Router Table Insert Plate Woodworking Tools
Specification/span>
Brand | Wnew |
Product Name | Woodworking Router Table Plate |
Material | Aluminium Alloy |
Type | 107mm Full Sets 107mm Full Sets with 65mm Reducing Ring Set 107mm Full Sets with 69mm Reducing Ring Set 107mm Full Sets with 80mm Reducing Ring Set 107mm Full Sets with 88.9mm Reducing Ring Set |
Manual | Click here to check |
Reducerring | Applicable Model | Size(Inside Diameter) |
107 | Porter-Cable7518, 7519 | 107mm |
107 to 65 | Porter Cable7518, 7519, MakitaRT0700C, Power Action, Domgcheng trimming machine | 107-65mm |
107 to 69 | Porter-Cable7518, 7519, For Dewalt DWP611, for Dewalt DCW600 | 107-69mm |
107 to 80 | Porter-Cable7518, 7519, Air Cooled Motor + Frequency Converter(round) | 107-80mm |
10 7to 88.9 | Eporter-Cable7518, 7519, Devon1316-1, BOSCH1617, For Dewalt 618, Porter-Cable690, Porter-CABL890 | 107-88.9mm |
Features:
-Heavy duty router lift with aluminium router insert plate.
-Designed specifically for cylindrical motor housings.
The router lift is made to fit the following router models:
1. All 4.2′ (107mm) diameter motor can be fitted right away from the box, without need of reducing collar. In this range are usually 3-1/4 HP motors.
And it’s a perfect match with our heavy duty 3-1/4HP router motor.
2. All 3-1/2′ (88.9mm) diameter motors.
3. All 80mm diamter motors, like:most of the CNC spindle moulders on the market.
4. All 69mm diameter motors, like:DW DWP611, DW DCW600.
5. All 65mm diameter motors, like:Makit 700C.
Note:
The router lift can ONLY fit for the router model we listed above or motors with the given diameters.
If your routers are not from the list above, please measure or determine carefully the diameter of your motor housing, and purchase accordingly.

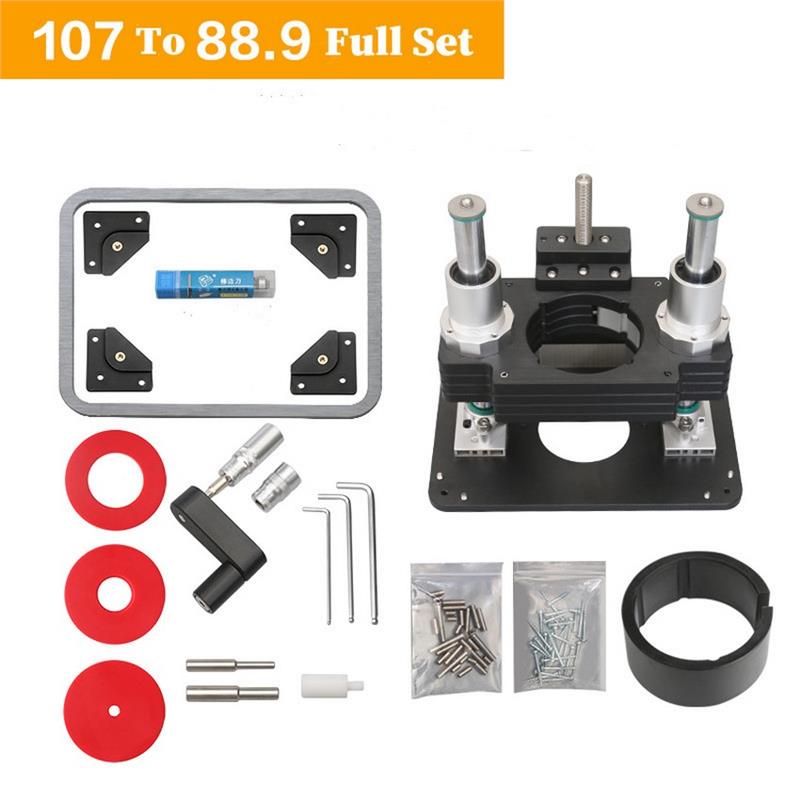

Package Set Included:(optional diameter)
1 x | Router Lift with strong 10mm Aluminium Router Plate |

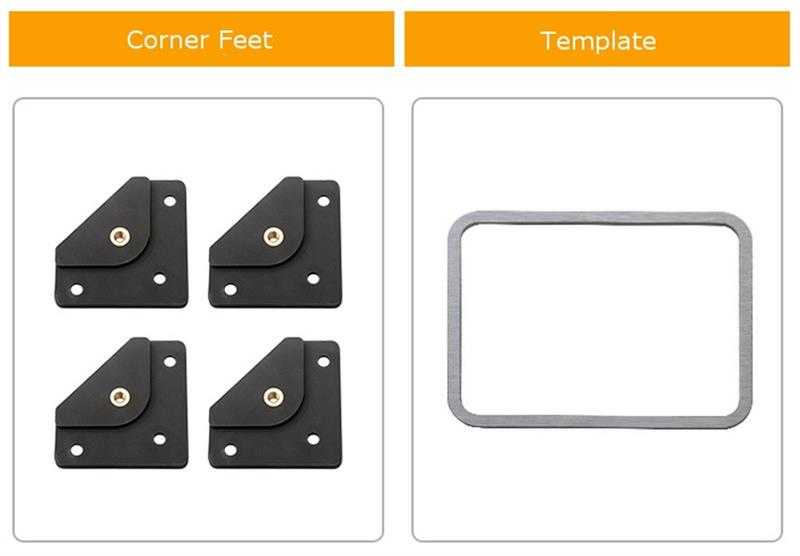

1 x | Template for making the opening into the router table |
1 x | Double Bearing Router Trimming Bit |
4 x | corner feet for Plate Adjustment |
1 x | removable pin, for safe freehand work |

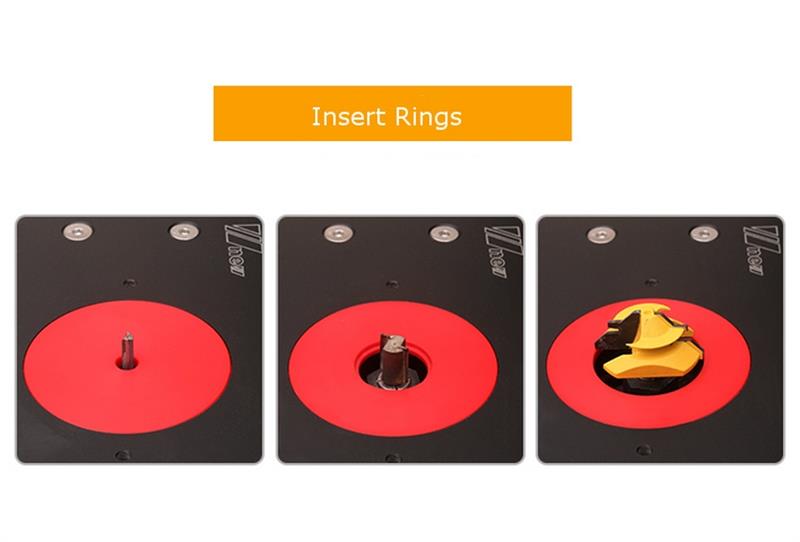

3 x | Ring Inserts with different size of center holes |
More Details:
Additional information
Weight | 10.27 kg |
---|---|
Size: No selection | 107mm, 107mm+65mm Ring, 107mm+69mm Ring, 107mm+80mm Ring, 107mm+88.9mm Ring |
