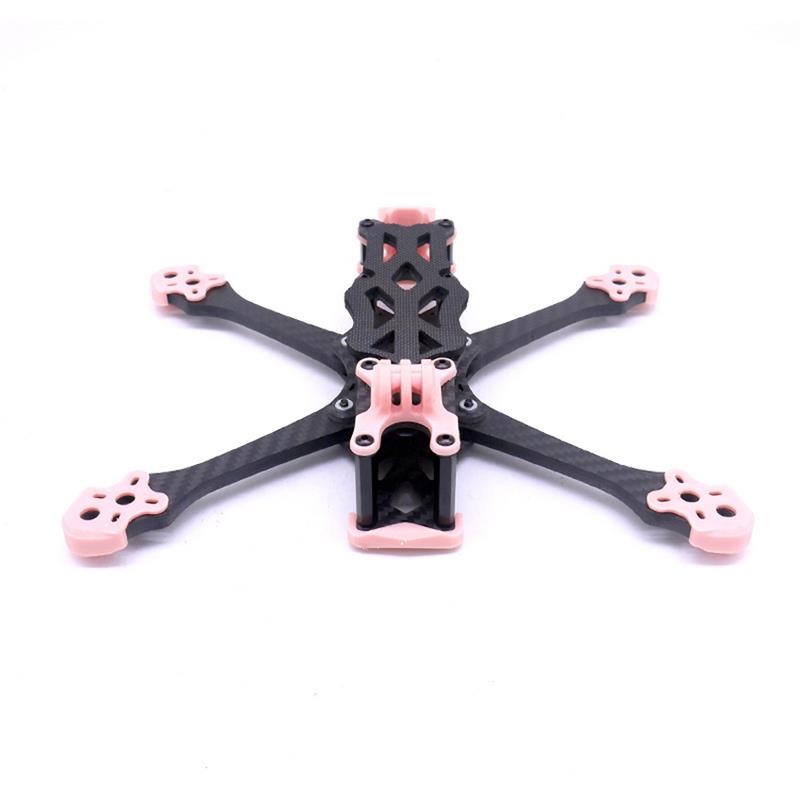

Teosaw Turbo 5S 223mm Wheelbase 5.5mm Arm Thickness 5 Inch Frame Kit Support DJI / Vista HD Digital System for FPV Racing Drone
Specification:
Model:Turbo 5S
Item Name:223mm Wheelbase 5 Inch Racing Frame Kit
Wheelbase:223mm
Material:3K Carbon Fiber (T700)
Arm Plate Thickness:5.5mm
Upper Plate Thickness:2mm
Side Plate Thickness:2mm
Bottom Plate Thickness:2.5mm
Center Plate Thickness:2.5mm
Inner Standoff Height:around 20mm
Weight:161g
Recommend Parts:(NOT Included)
Flight Controller:20x20mm / 30.5×30.5mm ( M3) F4 / F7 FC
Brushless Motor:16x16mm(M3) / 19x19mm (M3) Hole , 2204/2205 2207/2306/2405/2307/2308/2506
Propeller:50XX 5 Inch Prop, Max. 5.1 Inch
VTX Mounting Hole:20x20mm, M2
FPV Camera Width:22mm ( if use 20mm/ 19mm, need add gasket ; if use 14mm, need use 3d parts invert)
GPS:BN220
The following Parts are Compatible:( NOT Included)
FC & ESC:30.5×30.5mm HGLRC Zeus F748 Stack F722 F7 FC w/ 5V 9V BEC & 48A BL_S 4in1 ESC
20x20mm SKYSTARS Stack F405 Mini HD2 35A 3-6S FC & KM35 4IN1 ESC
Brushless Motor:iFlight XING-E Pro 2207 2207 1800KV 3-6S Brushless Motor
iFlight XING-E 2306 2450KV 2-4S Brushless Motor
Propeller:HQProp DP5X5X3V1S Durable 5050 5X5 5 Inch 3-Blade Propeller
VTX:HGLRC Zeus VTX 5.8G 40CH PIT/25/100/200/400/800mW FPV Transmitter
VTX & Camera:DJI Air Unit / CADDX Air Unit
GPS Module:BN220
Package Included:
1x Turbo 5S 223mm Frame Kit
1x set of 3D Printing Parts
Additional information
Weight | 0.207 kg |
---|
