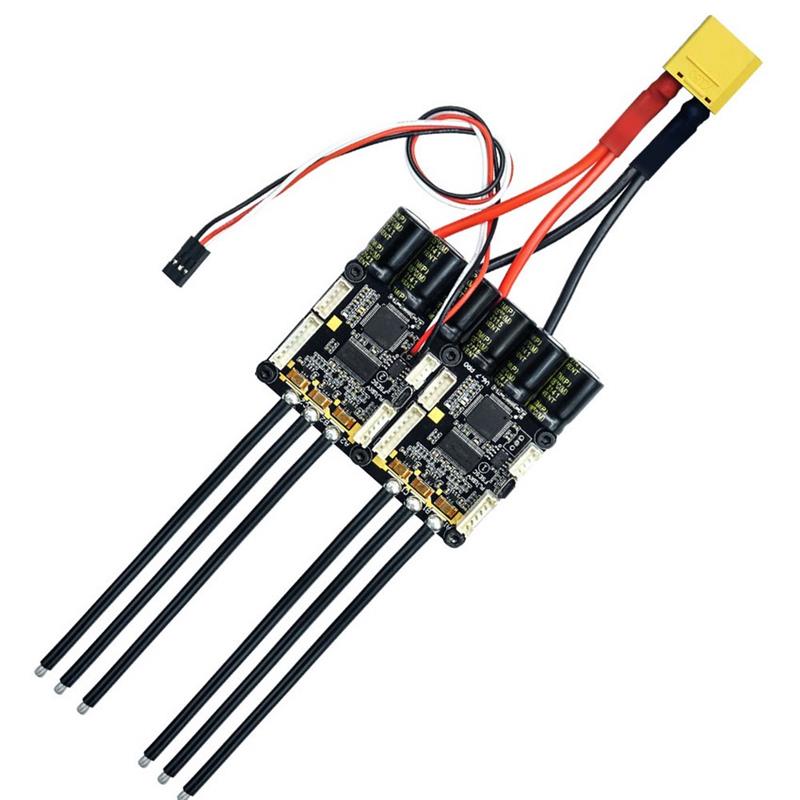

Flipsky Dual Mini FSESC6.7 Pro 140A with Aluminum Anodized Heat Sink for RC Models Electric Scooter Skateboards

Flipsky Dual Mini FSESC6.7 Pro 140A with Aluminum Anodized Heat Sink for RC Models Electric Scooter Skateboards
Description:
Specs:
Firmware:Latest Version.
Continuous current:140A; instantaneous current:400A
Voltage:14V-60V(Cells:4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )
BEC:5V@1A
ERPM:150000
Control Interface Ports:USB,CAN,UART,SPI, IIC
Supported Sensors:ABI??HALL??AS5047??AS5048A
Input Set Support:PPM, ADC, NRF, UART
Modes:DC, BLDC, FOC (sinusoidal)
Regenerative capacity:Yes
Programmable:Yes
Motor wire:12AWG
Power cable:14AWG (with XT90 connector)
Size:79.8*66.8*17.8mm
Features:
Support four control modes:Current/Dutycycle/Speed /Position control mode.
Protection functions:low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection.
Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
Package Included:
1X FSESC6.7 Pro 140A
