SUNKKO 709AD+ 220V 3.2KW Pulse Spot Welder Machine Battery Spot Soldering Machine

SUNKKO 709AD+ 220V 3.2KW Pulse Spot Welder Machine Battery Spot Soldering Machine
Features:
4 in 1 machine.
Fixed pulse welding.
Constane temperature soldering.
Inductive discharging welding.
Moveable pulse welding.
The whole new inductive discharging weiding mode. It is no need to be controlled by pedal control to weld.
It will weld immediately when welding head touch weiding object.
It is controlled by micro-computer for precise welding and increased welding consisitency in welding power controller.
4 in 1 design for welding and soldering in one machine with multifunction to make electronic product.
There are fixed welding head and moveable welding torch mode to suit for little component and large parts to weld.
It can be adjusted high power in 1200A for welding head to weld 0.35mm nickle plating.
It is energy management and save energy output.
There are 2-18 pulse to select that can weld different thickness.
The welding torch is very easy and convenient to use.
The knob for adjusting pulse and electric current is convenient to change pulse and electric current.
Double row with LED display is clearly to detect data.
T12 soldering iron can solder in fast and use longer.
It is suitable for welding different nickle material.

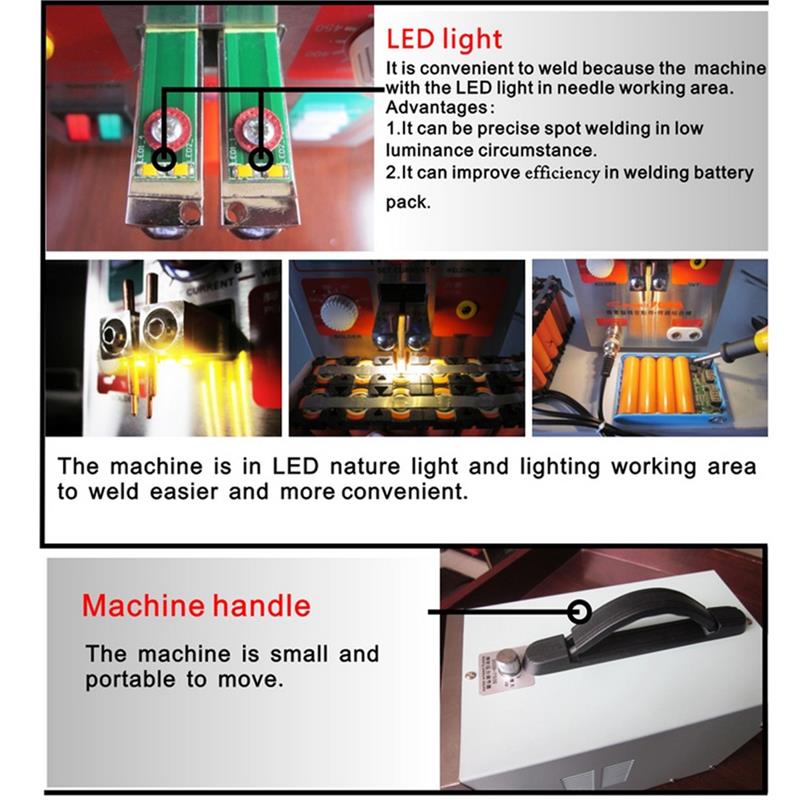

It is suitable for any luminance of lighting circumstance with LED illumination design.
Specification:
Welding part:
Supply voltage:AC 220V
Power:3..2KW (Instantaneous)
Welding Current:500A
Time of 2 pulse:1-10ms(Adjust)
Time of 4 pulse:2-20ms(Adjust)
Time of 8 pulse:8-80ms(Adjust)
Soldering Part:
Soldering temperature:150450/span>
Temperature accuracy:??5/span>
Output voltage:20VDC
Power:50W
Heating up time:6-8s to 300/span>
Size:140 x 245 x 200mm
Net weight:7kg
Package Included:
1 x S709AD+ Machine
1 x User manual
1 x Welding torch
1 x Soldering iron
1 x Soldering iron shelf
1 x Pedal control
4 x Welding needle(for fixed head)
2 x Welding needle(for welding torch)
1 x Wrench
2 x Fuse tube
1 x Electric grinding machine
1 x Battery fixture
50 x Nickle plating
Detail Pictures:
