T2401-O T2401-N DC 12V Dual LED Display Time Relay Module Digital Time Delay Relay Cycle Timer Switch Control Module Active/Passive Output

T2401-O T2401-N DC 12V Dual LED Display Time Relay Module Digital Time Delay Relay Cycle Timer Switch Control Module Active/Passive Output
#1 T2401-O:Active output
#2 T2401-N:No output

T2401-O
Product selling point:
1:Parameter setting is simpler
2:Small and exquisite appearance
3:Direct output type
4:Wide application
5:Timing range:0~999 (seconds, minutes, hours) Minimum unit:1 second
Parameter:
Product Model:T2401-O
Product weight:30g
Product size:48X29X34mm
Mounting opening:45.5×26.1mm
Timing range:0~999 (seconds, minutes, hours) Minimum unit:1 second
Technical parameters:DC12V 2OA MAX 240W MAX
Working humidity:35%~85%
Working temperature:-10~60??
Size unchanged, compatible with installation, convenient for direct output wiring, green start and red stop, easy to set up, appearance patent
Code menu introduction:
Press and hold the S button for 6 seconds to enter the code menu
Mode setting demo
Double-click the S key to enter the parameter setting mode
Safety warning:

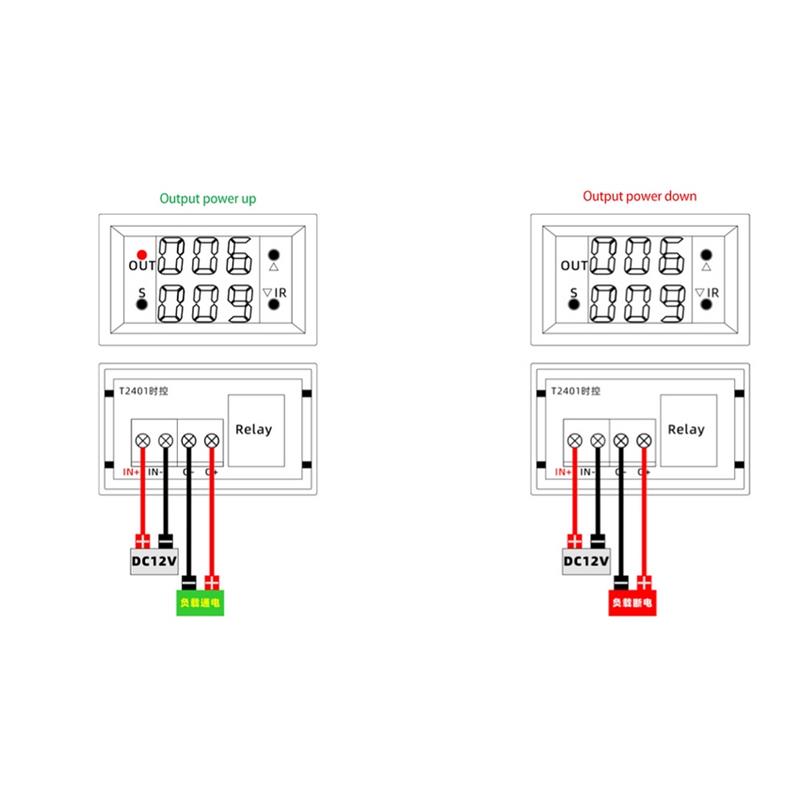

The output is active, connect the load and then power on to avoid short circuit
Package List:
1 x Digital display delay relay module

T2401-N
Description:
1:Wide range of applications
2:Exquisite appearance
3:Small size
4:Simple to use
5:Passive output
Parameter:
Contacts de-energized No output
Can be connected to loads other than 12V
Dimensions:47.6×28.6×33.2mm
Embedded installation
Mounting opening:45×26.1mm
Green on and red off and the timing display starts. The stop timer unit is easy to set independently and easy to use
1-way normally open relay control on-off

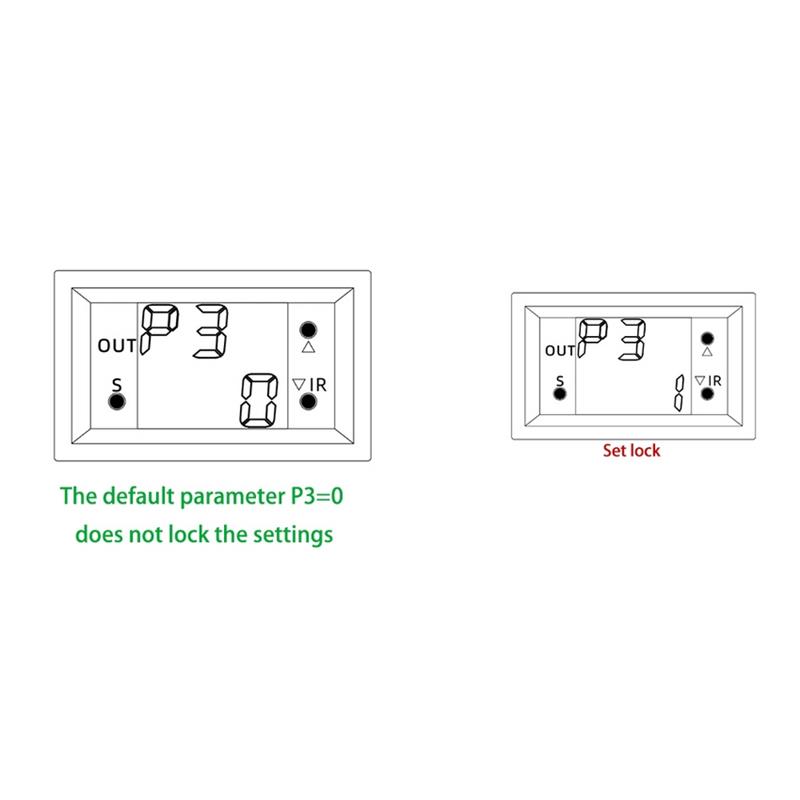

There is a setting lock to prevent accidental touch
The timing range is adjustable from 0 to 999 (seconds, minutes, hours)
Minimum timing unit:1 second
Timing error:??4.5%
Integrated crystal oscillator
Power-on auto-run power-off save settings
Working voltage:DC12V
Load power DC12V 20A240W AC220V 1500W ( max )
Loop switch supported
Alternate 1 switch is not supported
Package included:
1 x DC12V delay dual display digital time relay module
