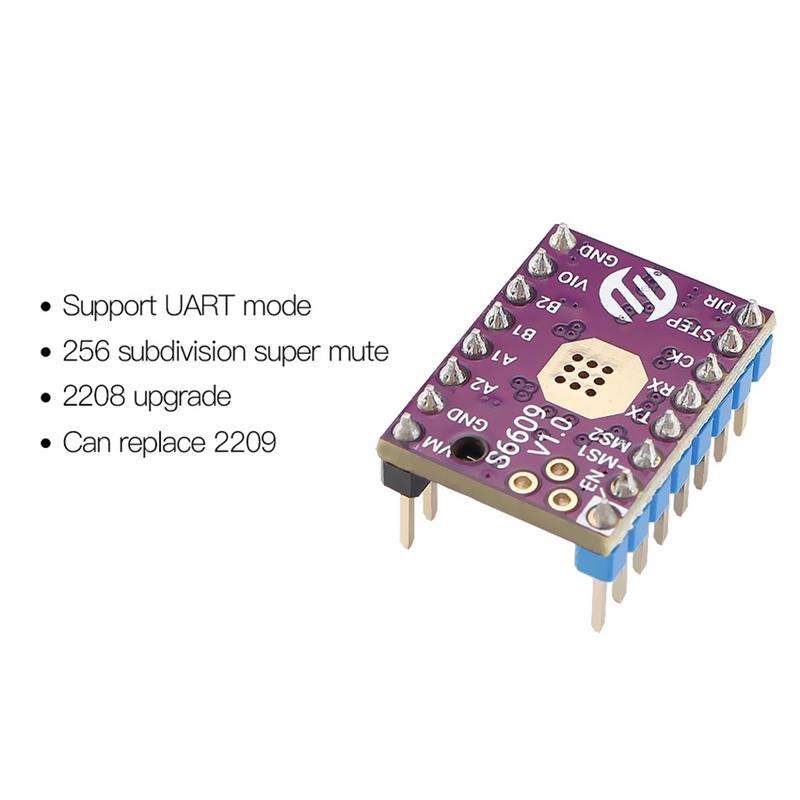

S6609 Stepper Motor Silent Driver Module Compatible with TMC2208 256 Subdivision for 3D Printer

S6609 Stepper Motor Silent Driver Module Compatible with TMC2208 256 Subdivision for 3D Printer
Shipping list.
S6609 stepper motor driver*1
Heat sink *1
Gift:
Screwdriver*1
Can replace TMC2208/2209.
4-layer 2OZ sunken gold TG155PCB

Working voltage 4V-36V

Maximum continuous current 2A, peak current 3A

STEP/DIR interface, input pulse 2/4/8/16 subdivision selectable, internal automatic increase to 256 subdivision

Ultra-low motor noise, automatic torque compensation by AGC over a wide speed range
Output short circuit protection, power and ‘ground’ short circuit protection

FLAG function abnormal indication

StepStick module pin compatible

Adjustable resistor or software adjustable current

TMC2208 library can be used

Uart mode support

Parameters:

Parameter Comparison:

S6609 driver schematic:
