10A/20A/30A 12/24V LCD Display Photovoltaic Solar Controller with Dual USB Ports
Description:
1. Build-in industrial micro controller.
2. Fully 4-stage PWM charge management.

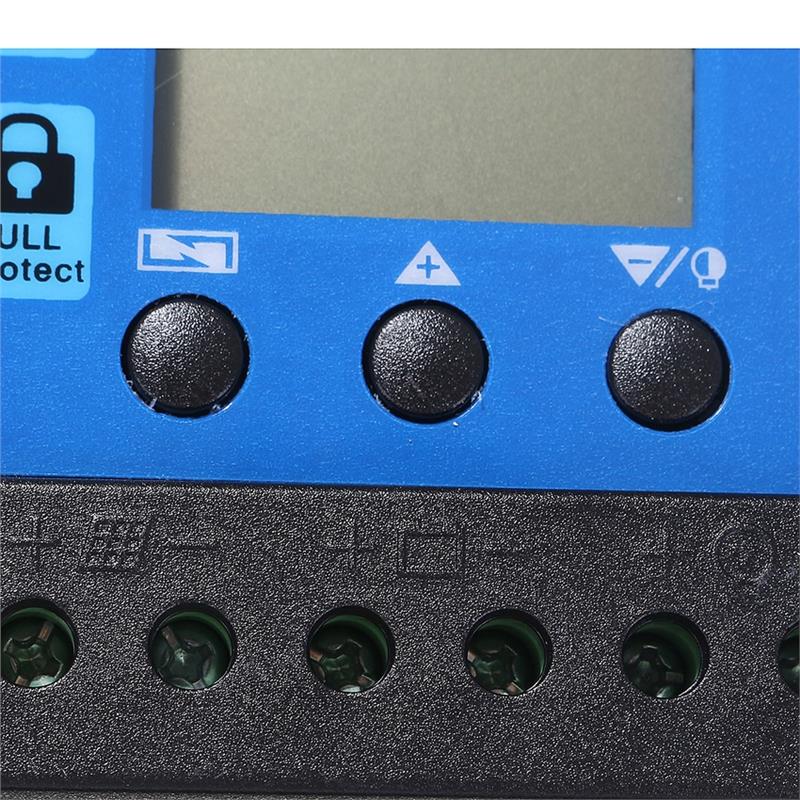

3. One-key setting,digital display, auto memory function.
4. Reverse current protections, low heat productions.
5. Build-in short-circuit protections, open-circuit protections, reverse protections, over-load protections.
Specifications:
| Buck charge | 22.8V |
| Float charge | 21.4V |
| USB output | 5V/3A |
| Working current | 10A |
| Self-consume | <10mA |
| Discharge stop | 21.4V |
| Voltage | DC 12V/24V |
| Max solar input | <50V |
| Rated working current | ??20A |
| Discharge reconnect | 25.2V |
| Working temperature | -35??~60?? |
| Output voltage | 12V/24V Automatically distinguish voltage |

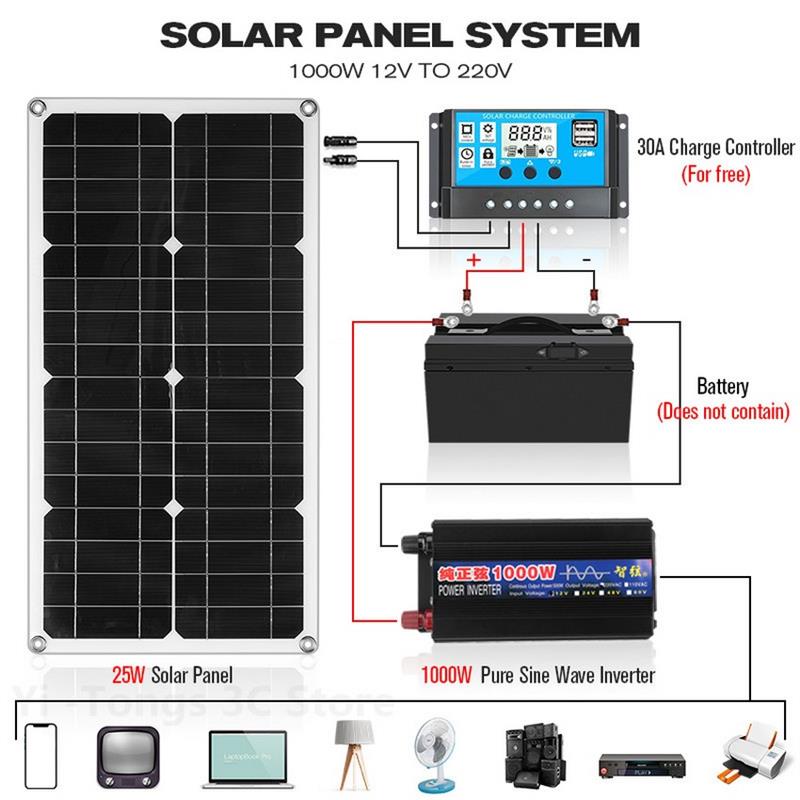

System Connection:
1.Connect the battery to the charge regulator – plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator – plus and minus.
3. Connect the consumer to the charge regulator – plus and minus.
Package Included:
| 1X | controller |
Additional information
| Weight | 0.15 kg |
|---|---|
| Ampere: No selection | 10A, 20A, 30A |
