Professional RF Demo Kit NanoVNA RF Tester Board Filter Attenuator for NanoVNA-F Vector Network Analyzer

Professional RF Demo Kit NanoVNA RF Tester Board Filter Attenuator for NanoVNA-F Vector Network Analyzer
Features:
Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life.
Compact and lightweight, easy to operate and use.
This is a vector network analyzer learner tool.
Can be used with NanoVNA-F to measure 6.5M ceramic notch filter.
Can be used with NanoVNA-F to measure homemade low-pass-filter, 3dB bandwidth about 400MHz.
Specification:
Material:PCB
Color:green
RLC series and parallel circuit 1
RLC series and parallel circuit 2
33 ohm resistance, SWR=1.5
75 ohm resistance, SWR=1.5
BSF ceramic notch filter, center frequency 6.5MHz
BPF ceramic filter, centre frequency 10.7MHz
RC series circuit
LC series circuit
Capacitor
Inductance
Homemade low-pass filter, 3dB bandwidth 400MHz
Homemade high-pass filter, 3dB bandwidth 500MHz
Short-circuit calibration circuit
Open-circuit calibration circuit
50 ohm load calibration circuit
Straight-through
10dB attenuation circuit
3dB attenuation circuit
Each set of functional circuits
Item size:100 x 100mm / 3.9 x 3.9in
Item weight:38g / 1.3ounce
Package size:159 x 152 x 52mm / 6.3 x 6.0 x 2.0in
Package weight:106g / 3.7ounce
Package included:

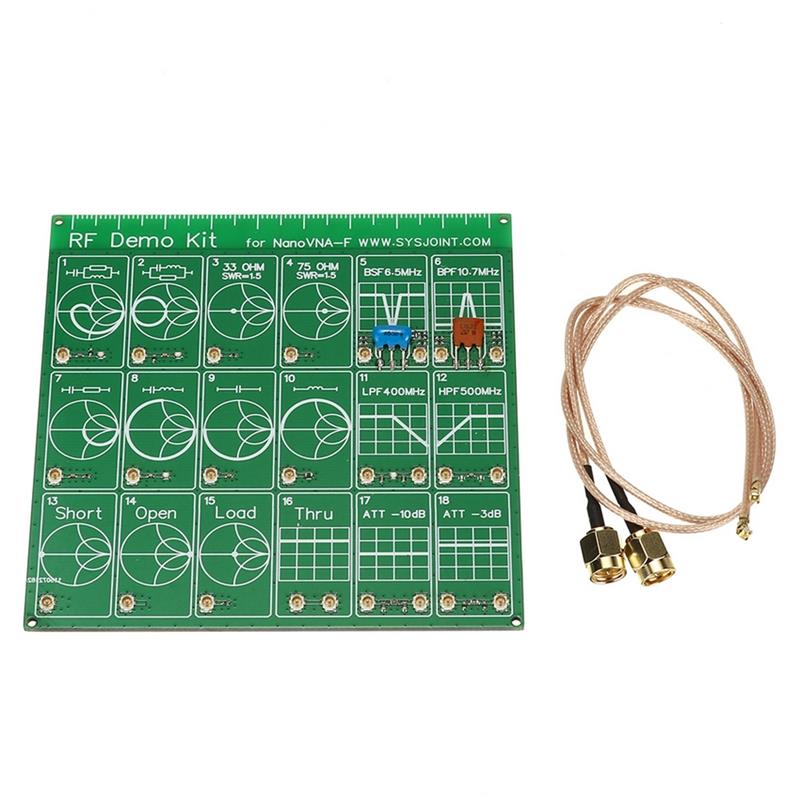

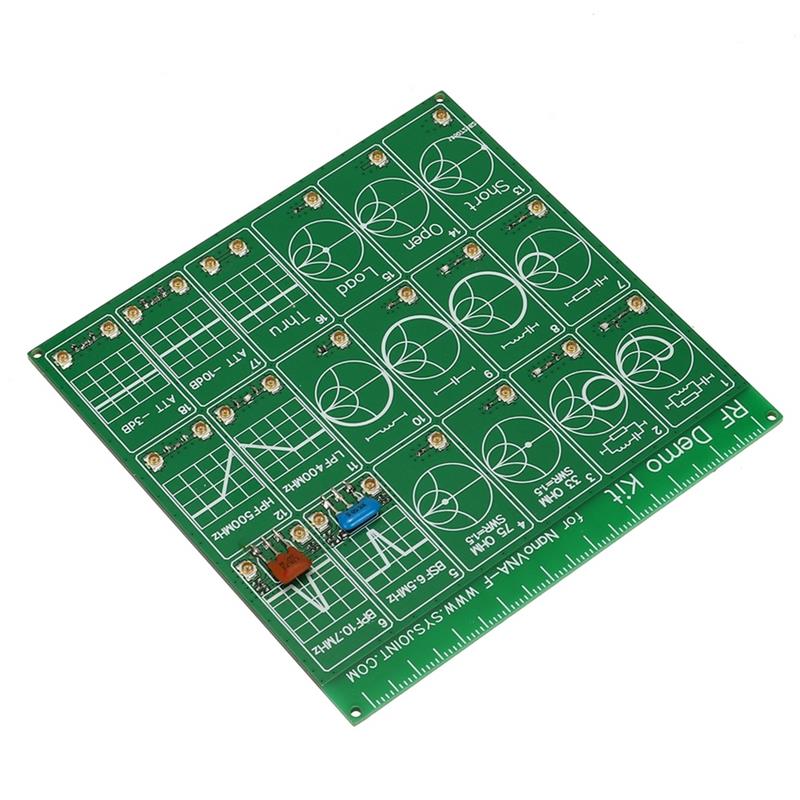

1 x PCB RF Tester Board
2 x 200mm Adapter Cable
