Surpass Hobby Rocket V2 LED Program Card for 45A 60A 80A Brushless Waterproof Electronic Speed Controller 1/10 RC Car Vehicles Parts

Surpass Hobby Rocket V2 LED Program Card for 45A 60A 80A Brushless Waterproof Electronic Speed Controller 1/10 RC Car Vehicles Parts
Description:
Brand:Surpass Hobby
Item Name:Rocket V2 LED Program Card
Product Size:70*43*13mm
Net Weight:24G
Gross Weight:28G
For 45A/60A/80A/120A/150A
Instuctions
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC.
5. When the connection of motor and battery is finished, the motor emits ??Beep-Beep?? tone.
6. When the throttle stick is in the neutral position, the motor re-emits ??Beep-Beep?? tone.
7. The ESC is workable.
Troubleshooting
1. If after power on, motor can??t work, no sound is emitted, please check the connections between battery pack and motor.
2. If after power on, LED flashes,please check the voltage of battery pack,which should be from 5V-13V
3. If the motor emits a ??Beep-Beep?? tone Only, please check all the connections:BEC wires, transmitter and receiver, throttle signal wires, etc. please check the transmitter TH.TRIM and adjust it to the motor re-emits ??Beep-Beep?? tone.
4. If the car can??t be speed up, please check either voltage of the battery pack is too low or the temperature of ESC is too high. If the voltage of the battery pack is too low, please replace the battery pack. If the temperature of ESC is too high, please check all connections. If not, please push the button EPA on your remote control.
5. If the car stops suddenly while in working state, please check the motor??s connections, and the barrier.
5. If the car runs in the opposite direction, which the transmitter is available, please swap two wire connections between the ESC and the motor.

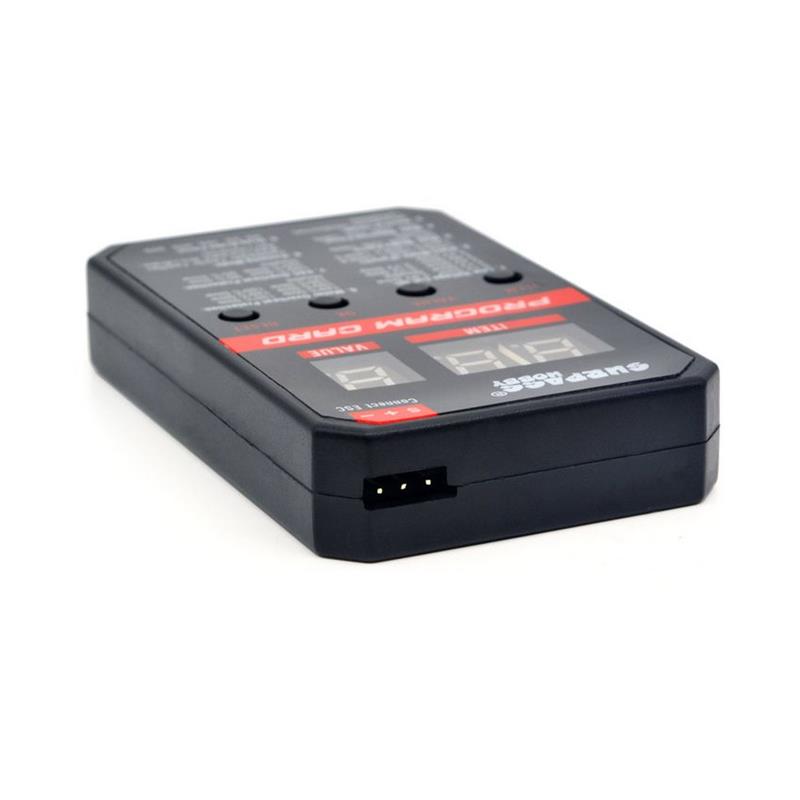

Programme card Appearance description:
1:Low Voltage Cut-Off:The function is mainly to prevent the lithium battery pack from over discharging. When using lithium battery pack,
please set the suitable value for low-voltage protection as your like.WARNING:Never use the default value??Non- protection’ for
lithium battery! 3.1V Slow?y2.9V Slow?y2.7V Slow?yDisable?y 3.4V Slow?y3.1V Stop?y2.9V Stop?y2.7V Stop?y3.4V Stop(default value 3. 1V Slow).
2:3 start modes (Also called??Punch’) Level3?yLevel1?y Level6?y Level2?yLevel4?yLevel5?y (default value Level3)
3:Maximum brake force:50%?y25%?y75%?y100%?yDisable(default value 50%)
4:Maximum reverse force:25%?y50%?y 75%?y100%(default value 25%)
5:Neutral range:9%(narrow),6%(Normal), 12%(Wide) (default value 9%)
6:Motor Overheat Protection:120??C Stop?y135??C Stop?y150??C Stop?y120??C Slow?y 135??C Slow?y 1 50??C Slow?y Disable(default value ,
120??C Stop)
7:ESC Overheat Protection:105??C Stop?y95??C Stop?y105??C Stop.95??C Stop?yDisable(default 105??C Stop)
8:Running Mode:Fwd/Rev/Br?y Fwd /Br?yFwd/Rev(default value Fwd/Rev/Br)(Fwd=Forward?yBrk=Brake?y Rev=Reverse)
9:Drag Brake Force:0%?y5%?y10%?y20%?y30%(default value 0%)
Programme card Method:
1. Connect BEC wires with the program car then turn on the ESC.
2. The programme card display ITEM form 1 to 15 corresponding VALUE
3. Please press the Key ‘IETM??to select different programs
4. Please press the Key??VALUE’ to select different value of the current program
5. Please press the Key??OK’ to confirm above selections
6. Please press the Key??RESET’ to reset the factory setting.
Package Included:
1x Rockert V2 LED Program Card
