AIMOS KC-KCM201P Wall Panel HDMI KVM Switch, A Port USB with Remote Control

AIMOS KC-KCM201P Wall Panel HDMI KVM Switch, A Port USB with Remote Control
Specifications:
Standards:HDMI 1.4??HDCP 1.4
Maximum pixel clock:340MHz
Maximum data rate:10Gbps
Resolution range:Up to 4Kx2K@30Hz, 3D, 1920*1080@60Hz
Connector:HDMI-A Interface
HDMI-A Interface:<5M( Resolution:1920*1080@60Hz)
Interface protocols:USB2.0
PC input interface type:USB-B
Output interface type:Output interface type
Power supply:USB Power
Power dissipation:MAX 2W
Temperature:Operating:-5?? ~ +70??
Humidity:Operating:5% ~ 90%
Dimension:100*60*20mm
Features:
*The 2 routes of high-definition video source and
USB interface implementation freely switch;
*Support video resolution up to 3840*2160 @30Hz??
*Compliance with HDMI 1.4 standard; >.Adaptive EDID/HDCP decryption, able to adapt to a
variety of complex application environment;
*Switched by button, which is convenient and quick; >.Support USB device, such as HUB, U-disk, printer, etc. >.HDCP 1.4 standard – high-bandwidth digital content
protection technology;
*High compatibility, can auto-match source and
display device; >.Built-in automatic adjustment system, make the
image smooth, clear and stable;
*Built-in ESD protection system;
*Simple to install, plug and play;
Description:

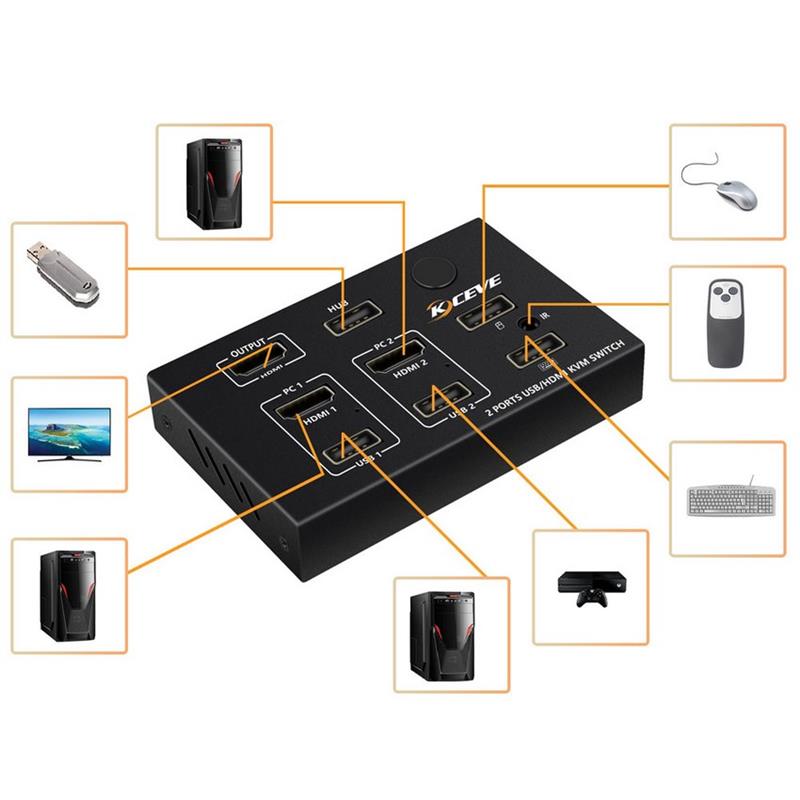

HDMI 2 ports KVM switch; 2 groups of high-definitionvideo source and USB interface realize freely switch.
Adaptive EDID/HDCP decryption. The equipment has excellent image processing and transmission capacity,
make the output signal is more smoother and stable,is a reliable, high performance and efficient way ofHDMI
USB switch. Suitable for office, computer room, monitoring host, etc.
Package Included:
1 Pcs HDMI KVM2*1 Switcher
2 Pcs USB Cable
1 Pcs User Manual
