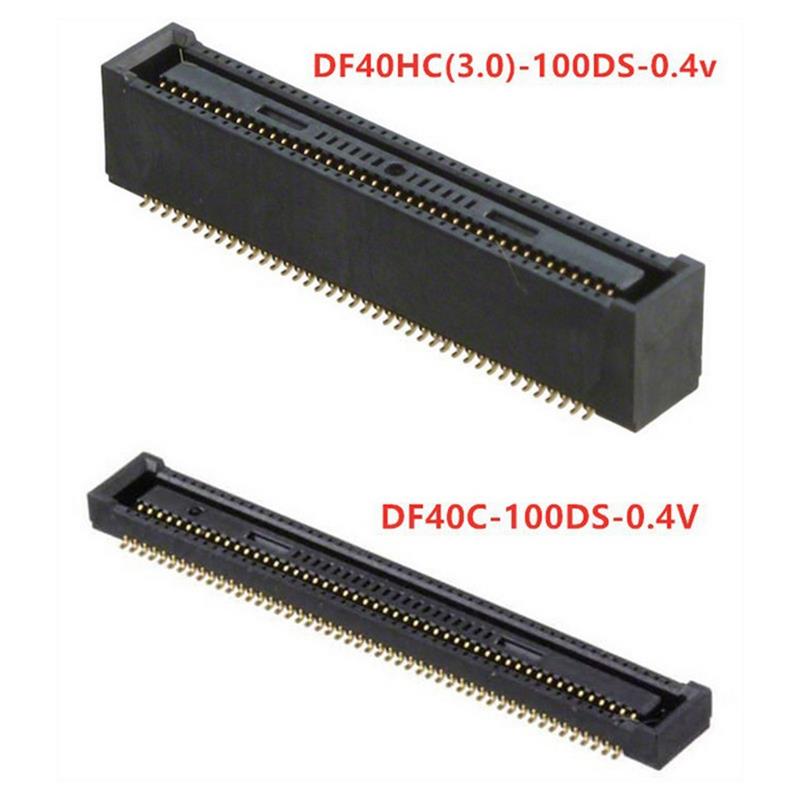

Raspberry Pi Computing Module CM4 Socket DF40HC(3.0)-100DS-0.4V / DF40C-100DS-0.4V
Features:
High Density Mounting:Space saving design with minimal connector width but still leaves enough area for easy pick and place installation
Choice of Multiple Stacking Heights:In addition to a space-saving design, multiple stacking heights are available to add versatility to any application.
Stack heights:1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm and 4.0mm.
High Contact Reliability:Despite their low profile and low profile, these contacts provide strong contact force and an effective mating length of 0.45mm at a stack height of 1.5mm.
This connector features a locking system that prevents accidental disconnect issues and a clear tactile click to ensure mating is done.
Reinforced structure with shock-absorbing device:shock-absorbing ribs are added on both sides of the connector.
Avoid Solder Wicking:A nickel plated barrier has been added to protect contact areas from potential solder wicking.
Contamination-Proof Design:When mated, the connectors are designed to cover the contacts, helping to prevent dust and other debris from entering the contacts. The SMT leads are kept very close to the connector housing, which also helps prevent short circuits from debris on the exposed contacts.
High-speed signal with anti-noise function:The shielded type can support high-speed signal transmission and prevent noise.
Minimum width:3.38mm
Package included:
1 x Raspberry Pi computing module
Additional information
Weight | 0.02 kg |
---|---|
The Type: No selection | DF40C-100DS-0.4V, DF40HC(3.0)-100DS-0.4v |
