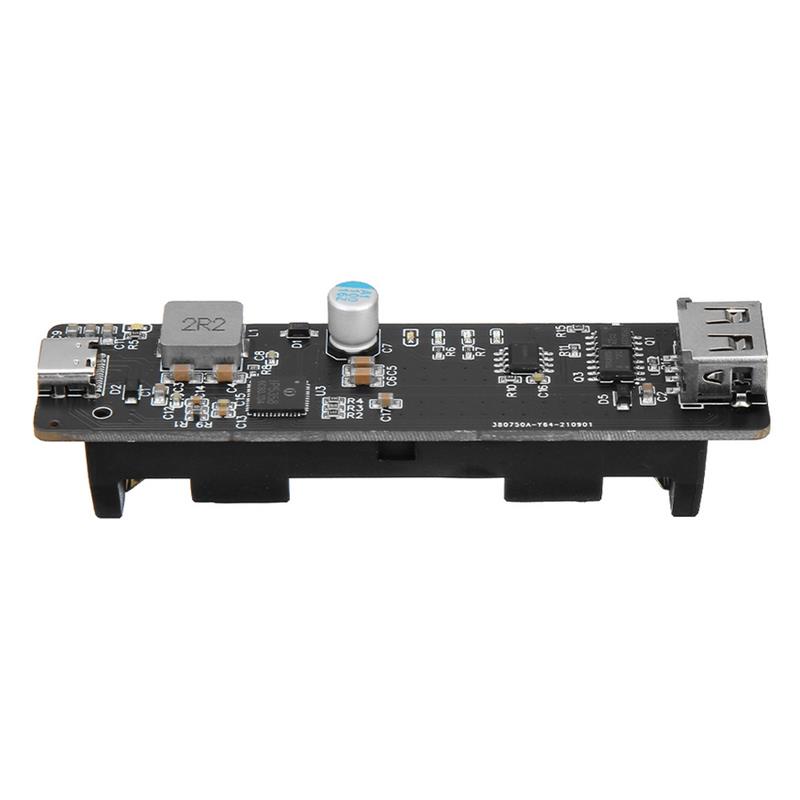

18W Two-way 18650 Battery Fast Charge Shield Board for Lipo Battery

18W Two-way 18650 Battery Fast Charge Shield Board for Lipo Battery
Description:
Single-slot single-cell 18650 lithium battery 18W two-way fast charging version board, which is not only a fast charging, but also a mobile power supply that supports multiple protocols. It integrates QC2.0/QC3.0/MTK PE output fast charging protocol,
FCP, AFC, SFCP input/output fast charge protocol, support PD2.0/PD3.0 bidirectional input/output, support PPS output protocol (5~11V, 20mv/step output voltage range).
Up to 5A current can be reached during charging, with adaptive current adjustment. When discharging output, 5V/3.1A, 9V/2A, 12V/1.5A, maximum output capacity of 18W. 4 LEDs show the charge/discharge power status,
There is also a fast charge indicator.
Specification:
Item Name:18650 two-way fast charging board
Size:90*22*25mm
Weight:23g
Note:
The discharge power of the charging box is large, try to use the power 18650 battery.
Each time the battery is inserted, the lowest position of the battery indicator will flash 4 times and enter the locked state. You need to plug in the battery to enter the charging state to activate the output.
Package Included:
1x 18650 two-way fast charging board
