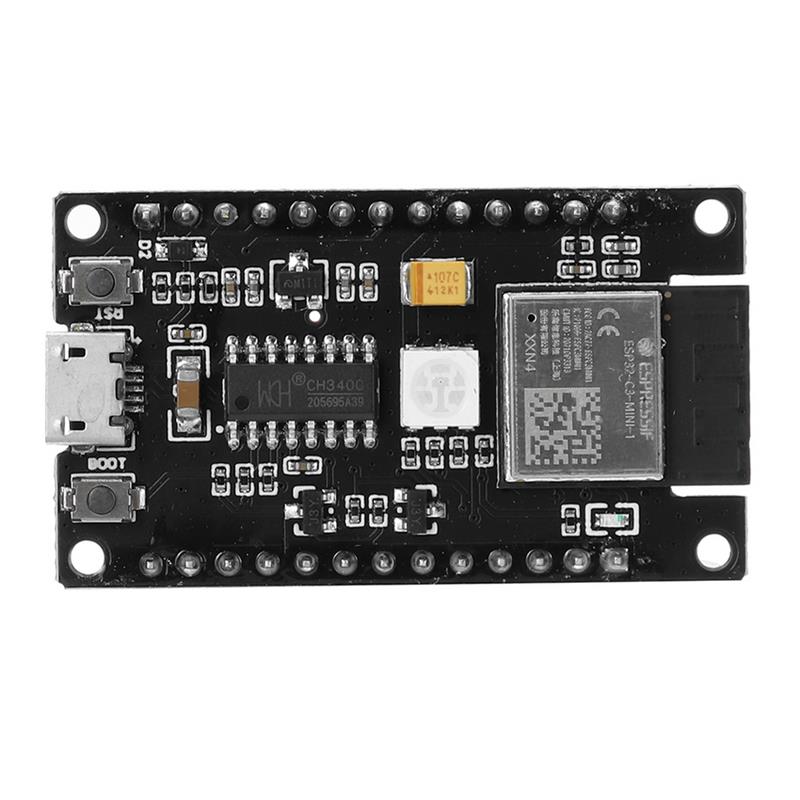

ESP32-C3 Internet of Things Development Board WiFi+5.0 bluetooth Dual-mode Module Wireless Communication Module
MCU:
Built-in ESP32-C3FH4 or ESP32-C3FN4 chip, RISC-V 32-bit single-core microprocessor, the maximum frequency is 160MHz
4MB embedded flash
384KBROM
400KB SRAM (of which 16KB is dedicated to cache)
8KBRTCSRAM
WiFi:
Support IEEE802.11b/g/n protocol
Working channel center frequency range:2412~2484MHz
Supports 20MHz and 40MHz bandwidth in the 2.4GHz frequency band
Support 1T1R mode, data rate up to 150Mbps
Wireless Multimedia (WMM)
Frame aggregation (TX/RXA-MPDU, TX/RXA-MSDU)
Immediate Block ACK (ImmediateBlockACK)
Fragmentation and reorganization (Fragmentationanddefragmentation)
Transmission opportunity (Transmissionopportunity, TXOP)
Beacon automatic monitoring (hardware TSF)
4 ?? virtual Wi-Fi interface
Support infrastructure network (InfrastructureBSS) Station mode, SoftAP mode, Station+SoftAP mode and promiscuous mode at the same time. Please note that when the ESP32-C3 series scans in Station mode, the SoftAP channel will change at the same time
Antenna diversity
802.11mcFTM
Bluetooth:
Bluetooth Low Energy (BluetoothLE):Bluetooth5, Bluetoothmesh
Rate support 125Kbps, 500Kbps, 1Mbps, 2Mbps
Broadcast Extensions (AdvertisingExtensions)
Multiple Advertisement (MultipleAdvertisementSets)
Channel Selection (ChannelSelectionAlgorithm#2)
Hardware:
Module interface:GPIO, SPI, UART, I2C, I2S, infrared remote control (remotecontrolperipheral), LEDPWM controller, general DMA controller, TWAI controller (compatible with ISO11898-1), USB serial port/JTAG controller, temperature sensor , SAR A/D converter
40MHz integrated crystal oscillator
Working environment temperature:?C85??C version module:?C40~85??C?C105??C version module:-40~105??C
Package incldued:
1 x ESP-C3-12F-Kit Series Development Board
Additional information
Weight | 0.012 kg |
---|
