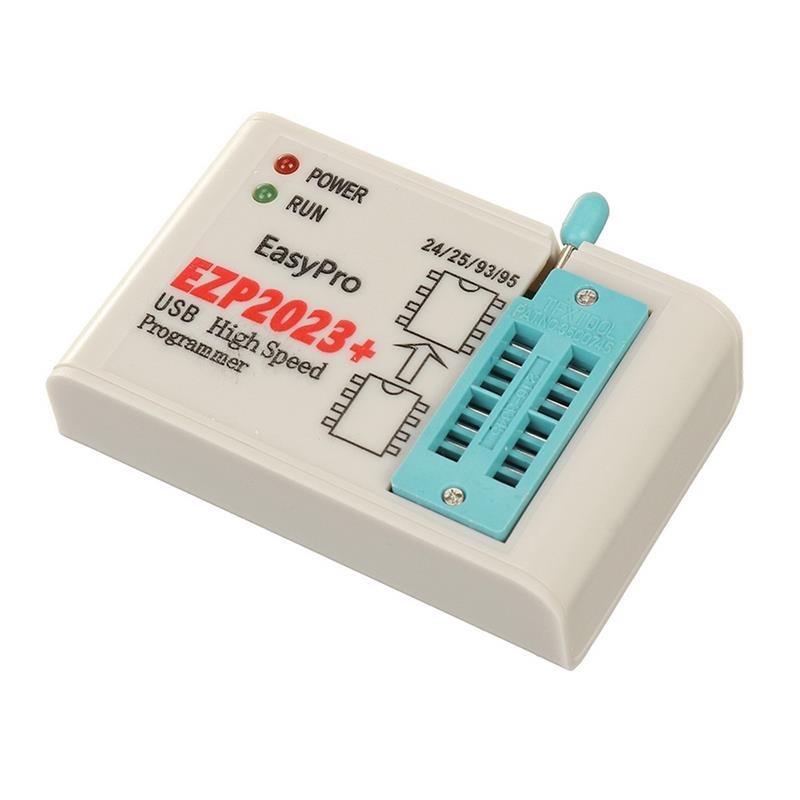

EZP2023+ High-speed SPI FLASH Programmer 24/25/93 bios 25T80 Burning Offline Reset Kit

EZP2023+ High-speed SPI FLASH Programmer 24/25/93 bios 25T80 Burning Offline Reset Kit
Function description, application areas:
1. Home appliance repair:suitable for the home appliance repair industry to flash memory chips on color TVs, DVDs, computer motherboards, and hard drives.
2. Product R&D:The test chip is programmed during the company’s product R&D process.
3. Factory mass production:The fully automatic offline copy function is especially suitable for batch burning of memory chips in the factory.
Features:
1. USB 2.0 interface, speed up to 12Mbps.
2. The read and write speed is super fast. It only takes 3 seconds to read EN25T80 and 9 seconds to write EN25T80. It is currently the fastest BIOS chip programmer on the market.
3. Automatically recognize the chip model.
4. Automatically detect whether the chip is placed properly.
5. Automatically select chip power supply voltage.
6. Automatic offline copy.
7. Support PC software and programmer firmware upgrade.
8. Fully support 25 FLASH, 24 EEPROM, 25 EEPROM, 93 EEPROM and other series of memory chips.
9. The appearance is small and easy to carry, about the same size as a normal business card.
10. Weight:115 grams
List of supported chip models:
Support 24, 25, 93 series chips of almost all manufacturers on the market!
**************************************25 SPI FLASH****************************************
AMIC:A25L05P, A25L512, A25L010, A25L10P, A25L020, A25L20P, A25L040, A25L40P, A25L080, A25L80P, A25L016, A25L16P, A25L032
ATMEL@:AT25F512, AT25F512A, AT25F512B, AT25F1024, AT25F1024A, AT25FS010, AT25DF021, AT25F2048, AT25DF041A, AT25F4096, AT25FS040, AT26F004, AT26DF081A, AT25DF161, AT26DF321, AT26DF321, AT26DF321, AT25DF321, AT26DF161A, AT25DF321
EON:EN25F05, EN25LF05, EN25P05, EN25D10, EN25F10, EN25LF10, EN25P10, EN25D20, EN25F20, EN25LF20, EN25D40, EN25F40, EN25LF40, EN25D80, EN25F80, EN25Q80, EN25T80, EN25B16, EN25B, EN25B16, EN25B16, EN25B16 EN25B32T, EN25F32, EN25P32, EN25Q32, EN25B64, EN25B64T, EN25F64, EN25P64, EN25Q64, EN25F128, EN25Q128
ES:ES25P10, ES25P20, ES25M40, ES25M40A, ES25P40, ES25M80, ES25M80A, ES25P80, ES25M16, ES25M16A, ES25P16, ES25P32
ESMT:F25L004A, F25L04UA, F25L008A, F25L08PA, F25L016A, F25L16PA, F25L32PA, F25L32QA
MXIC:MX25L512, MX25V512, MX25L1005, MX25L2005, MX25L4005A, MX25V4005, MX25L8005, MX25V8005, MX25L1605D, MX25L1635D, MX25L3205D, MX25L3225D, MX25D MXL3235D, 640
NEXFLASH:NX25P10, NX25P20, NX25P40, NX25P80, NX25P16, NX25P32
PMC:PM25LV512A, PM25LV010A, PM25LV020, PM25LV040, PM25LV080B, PM25LV016B
SAIFUN:SA25F005, SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320
SPANSION:S25FL004A, S25FL008A, S25FL016A, S25FL032A, S25FL064A
SST:SST25VF512, SST25VF512A, SST25VF010, SST25VF010A, SST25VF020, SST25VF020A, SST25VF040, SST25VF040A, SST25VF040B, SST25VF080B, SST25VF016B, SST25VF032B, SST25ST25VF064
ST:M25P05A, M25P10A, M25PE10, M25P20, M25PE20, M25P40, M25PE40, M25P80, M25PE80, M25PX80, M25P16, M25PE16, M25PX16, M25P32, M25PX32, M25P64, M25PX64, M25P128
WINBOND:W25P10, W25X10, W25X10A, W25X10AL, W25X10L, W25P20, W25X20, W25X20A, W25X20AL, W25X20L, W25P40, W25X40, W25X40A, W25X40AL, W25X40L, W25P80, W80X25, W25P80 W25X64
******************************************24 EEPROM******************************************
ATMEL@:AT24C01, AT24C01A, AT24C01B, AT24C02, AT24C02A, AT24C02B, AT24C04, AT24C04A, AT24C04B, AT24C08, AT24C08A, AT24C08B, AT24C16, AT24C16A, AT24C24B, AT24C64, AT24C24B, AT24C128, AT24C24A AT24C256, AT24C256A, AT24C256B, AT24C512, AT24C512A, AT24C512B, AT24C1024, AT24C1024A, AT24C1024B
CATALYST@:CAT24C01, CAT24WC01, CAT24C02, CAT24WC02, CAT24C04, CAT24WC04, CAT24C08, CAT24WC08, CAT24C16, CAT24WC16, CAT24C32, CAT24WC32, CAT24C64, CAT24WC64, CAT24C128, CAT24WC, 512, CAT24WC256, CAT24WC128
COMMON:24C00 3V, 24C00 5V, 24C01 3V, 24C01 5V, 24C02 3V, 24C02 5V, 24C04 3V, 24C04 5V, 24C08 3V, 24C08 5V, 24C16 3V, 24C16 5V, 24C32 3V, 24C32 5V, 24C64 3V, 24C64 5V 24C128 3V, 24C128 5V, 24C256 3V, 24C256 5V, 24C512 3V, 24C512 5V, 24C1024 3V, 24C1024 5V
FAIRCHILD:FM24C01L, FM24C02L, FM24C03L, FM24C04L, FM24C05L, FM24C08L, FM24C09L, FM24C16L, FM24C17L, FM24C32L, FM24C64L, FM24C128L, FM24C512L, FM24C512L, FM24C512L,
HOLTEK:HT24C01, HT24LC01, HT24C02, HT24LC02, HT24C04, HT24LC04, HT24C08, HT24LC08, HT24C16, HT24LC16, HT24C32, HT24LC32, HT24C64, HT24LC64, HT24LC128, HT24C24C256, HT24LC128, HT24LC128
ISSI:IS24C01, IS24C02, IS24C04, IS24C08, IS24C16, IS24C32, IS24C64, IS24C128, IS24C256, IS24C512, IS24C1024
MICROCHIP:24AA00, 24C00, 24LC00, 24AA01, 24AA014, 24C01C, 24LC014, 24LC01B, 24AA02, 24LC02B, 24AA024, 24AA025, 24AA04, 24C02C, 24LC024, 24LC025, 24LC04B, 24AA08, 24LC08B, 24AA16, 24AA64, 24LC32, 24AA64, 24LC 24FC64, 24LC64, 24AA128, 24FC128, 24LC128, 24AA256, 24FC256, 24LC256, 24AA512, 24FC512, 24LC512, 24AA1024
NSC:NSC24C02, NSC24C02L, NSC24C64
RAMTRON:FM24C04A, FM24CL04, FM24C16A, FM24CL16, FM24C64, FM24CL64, FM24C256, FM24CL256, FM24C512
ROHM:BR24C01, BR24L01, BR24C02, BR24L02, BR24C04, BR24L04, BR24C08, BR24L08, BR24C16, BR24L16, BR24C32, BR24L32, BR24C64, BR24L64
ST:ST24C01, ST24C02, ST24C04, ST24C08, ST24C16, ST24C32, ST24C64
XICOR:X24C01, X24C02, X24C04, X24C08, X24C16
*****************************************93 EEPROM*******************************************
AKM:AK93C45AV, AK93C55AV, AK93C65AV, AK93C75AV
ATC:ATC93C46, ATC93LC46(16bit), ATC93LC46(16bit)-SOP8, ATC93LC46(8bit), ATC93LC46(8bit)-SOP8, ATC93C56, ATC93LC56(16bit), ATC93LC56(16bit)-SOP8, ATC93LC56(8bit), ATC93LC56(8bit)-SOP8, ATC93C66, ATC93LC66(16bit), ATC93LC66(16bit)-SOP8, ATC93LC66(8bit), ATC93LC66(8bit)-SOP8
ATMEL@:AT93C46(16bit), AT93C46(16bit)-SOP8, AT93C46(8bit), AT93C46(8bit)-SOP8, AT93C46A, AT93C56(16bit), AT93C56(16bit)-SOP8, AT93C56(8bit), AT93C56(8bit)-SOP8, AT93C57(16bit), AT93C57(16bit)-SOP8, AT93C57(8bit), AT93C57(8bit)-SOP8, AT93C66(16bit), AT93C66(16bit)-SOP8, AT93C66(8bit), AT93C66(8bit)-SOP8, AT93C86(16bit), AT93C86(16bit)-SOP8, AT93C86(8bit), AT93C86(8bit)-SOP8
CATALYST@:CAT93C46(16bit), CAT93C46(8bit), CAT93C46A, CAT93C46I, CAT93C56(16bit), CAT93C56(8bit), CAT93C56A, CAT93C57(16bit), CAT93C57(16bit)-SOP8, CAT93C66(16bit), CAT93C66(8bit), CAT93C66A, CAT93C86(16bit), CAT93C86(8bit)
COMMON:93C46(16bit), 93C46(8bit), 93C56(16bit), 93C56(8bit), 93C66(16bit), 93C66(8bit), 93C86(16bit), 93C86(8bit)
EXEL:XL93C06, XL93C46, XL93CS46, XL93LC46, XL93C56, XL93LC56, XL93C66, XL93LC66
FAIRCHILD:FM93C06AM8(16bit), FM93C06AM8(8bit), FM93C06M8, FM93C06N, FM93C46AM8(16bit), FM93C46AM8(8bit), FM93C46AN(16bit), FM93C46AN(8bit), FM93CS46(16bit), FM93C56AN(16bit), FM93C56AN(8bit), FM93CS56(16bit), FM93C66AM8(16bit), FM93C66AM8(8bit), FM93C66AN(16bit), FM93C66AN(8bit), FM93C66B, FM93C66M8(16bit), FM93C66MT8(16bit), FM93C66N(16bit), FM93CS66(16bit), FM93C86AM8(16bit), FM93C86AM8(8bit), FM93C86AN(16bit), FM93C86AN(8bit)
HOLTEK:HT93LC46A(16bit), HT93LC46A(8bit), HT93LC56A(16bit), HT93LC56A(8bit), HT93LC66A(16bit), HT93LC66A(8bit)
ICT:ICT93C46(16bit), ICT93C46(8bit), ICT93C56(16bit), ICT93C56(8bit), ICT93C66(16bit), ICT93C66(8bit)
ISSI:IS93C46(16bit), IS93C56(16bit), IS93C66(16bit)
MICROCHIP:93C06(16bit), 93C06(16bit)-SOP8, 93AA46(16bit), 93AA46(8bit), 93AA46(8bit)-SOP8, 93C46(16bit), 93C46(16bit)-SOP8, 93C46A, 93C46B, 93LC46(16bit), 93LC46(16bit)-SOP8, 93LC46(8bit), 93LC46(8bit)-SOP8, 93LC46A, 93LC46B, 93LC46B-SOP8, 93AA56(16bit), 93AA56(8bit), 93AA56(8bit)-SOP8, 93C56(16bit), 93C56(16bit)-SOP8, 93C56(8bit), 93C56(8bit)-SOP8, 93C56A, 93C56A-SOP8, 93C56B, 93C56B-SOP8, 93LC56(16bit), 93LC56(16bit)-SOP8, 93LC56(8bit), 93LC56(8bit)-SOP8, 93LC56A, 93LC56B, 93LC56B-SOP8, 93AA66(16bit), 93AA66(8bit), 93AA66(8bit)-SOP8, 93C66(16bit), 93C66(16bit)-SOP8, 93C66(8bit), 93C66(8bit)-SOP8, 93C66A, 93C66A-SOP8, 93C66B, 93C66B-SOP8, 93LC66(16bit), 93LC66(16bit)-SOP8, 93LC66(8bit), 93LC66(8bit)-SOP8, 93LC66A, 93LC66B, 93LC66B-SOP8, 93AA76(16bit), 93AA76(8bit), 93C76(16bit), 93C76(8bit), 93LC76(16bit), 93LC76(8bit), 93LC76A, 93LC76B, 93AA86(16bit), 93AA86(8bit), 93C86(16bit), 93C86(8bit), 93LC86(16bit), 93LC86(8bit), 93LC86A, 93LC86B
NSC:NSC93C06, NSC93C06-SOP8, NSC93CS06, NSC93C46, NSC93CS46, NSC93C56, NSC93CS56, NSC93S56, NSC93C66, NSC93CS66, NSC93C86
ROHM:BR93LC46, BR93LC46RF, BR93LC56, BR93LC56RF, BR93LC66, BR93LC66RF
ST:ST93C06, M93S46, M93S46-SOP8, M93S46-T8, M93S46R, M93S46R-SOP8, M93S46W, M93S46W-SOP8, ST93C46, M93S56, M93S56-SOP8, M93S56R, M93S56R-SOP8, M93S56W, M93S56W-SOP8, ST93C56, M93S66, M93S66-SOP8, M93S66R, M93S66R-SOP8, M93S66W, M93S66W-SOP8, ST93C66
*****************************************25 EEPROM*********************************************
ATMEL@:AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT25256, AT25512
CATALYST@:CAT25C01, CAT25C01P, CAT25C01S, CAT25C01U, CAT25C02P, CAT25C02S, CAT25C02U, CAT25C03P, CAT25C03S, CAT25C03U, CAT25C04P, CAT25C04S, CAT25C04U, CAT25C05P, CAT25C05S, CAT25C05U, CAT25C08P, CAT25C08S, CAT25C08U, CAT25C09P, CAT25C09S, CAT25C09U, CAT25C16P, CAT25C16S, CAT25C16U, CAT25C17P, CAT25C17S, CAT25C17U, CAT25C32P, CAT25C32S, CAT25C33P, CAT25C33S, CAT25C64P, CAT25C64S, CAT25C65P, CAT25C65S, CAT25C128P, CAT25C128S, CAT25C256P, CAT25C256S
COMMON:25010, 25020, 25040, 25080, 25160, 25320, 25640, 25128, 25256, 25512
MICROCHIP:25AA040, 25C040, 25LC040, 25AA080, 25C080, 25LC080, 25AA160, 25C160, 25LC160, 25AA320, 25C320, 25LC320, 25AA640, 25C640, 25LC640
RAMTRON:FM25C160, FM25640, FM25CL64
ST:ST25C01, ST25W01, ST25C02, ST25W02, ST25C04, ST25W04, ST25C08, ST25W08, ST25C16, ST25W16
TI:TI2532, TI2532A, TI2564
XICOR:XC25010, XC25020, XC25040, XC25080, XC25160, XC25320, XC25640, XC25128, XC25256, XC25512
Package includes:
(optional)
1 x Programmer host
1 x High-speed shielded USB communication cable
1 x CD (If you have not received the CD, you can download it from this link.>>>Click me<<<)
2 x simple patch adapters
