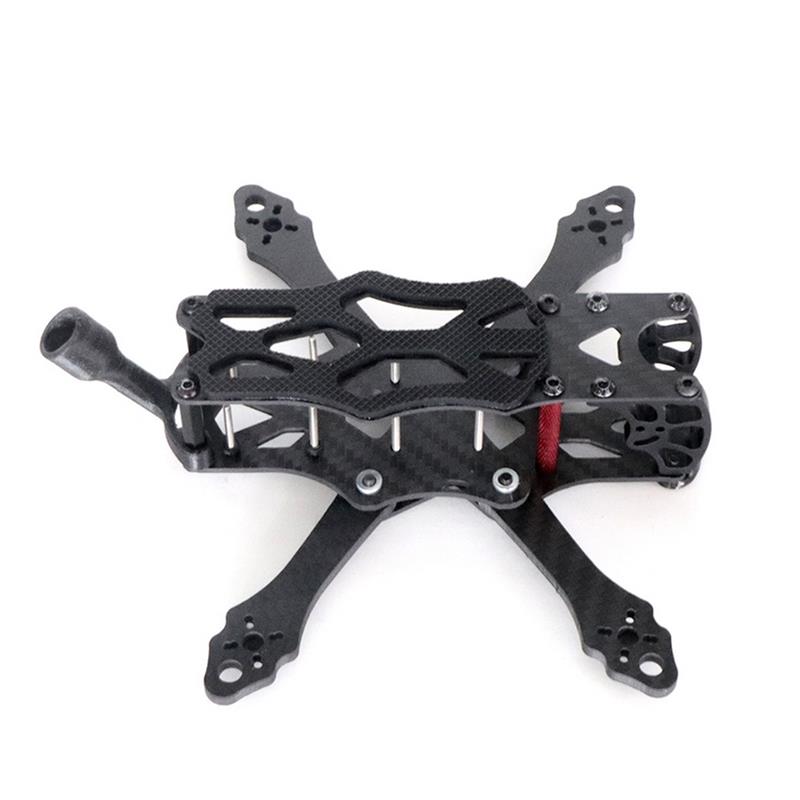

HSKRC APEX3 Pro 150mm 3 Inch / APEX4 Pro 190mm 4 Inch Carbon Fiber Frame Kit for RC Racing Drone
Description:
Brand:HSKRC
Item Name:150mm 3 Inch / 190mm 4 Inch Racing Frame Kit
| 3 Inch Version | 4 Inch Version | |
| Model | APEX3 Pro | APEX4 Pro |
| Wheelbase | 150mm | 190mm |
| Upper Plate Thickness | 1.5mm | 1.5mm |
| Bottom Plate Thickness | 2mm | 2mm |
| Arm Plate Thickness | 4mm | 4mm |
| Camera Side Plate Thickness | 5mm(Camers screws M2*7) | 5mm(Camers screws M2*7) |
| Frame Inner Standoff Height | 25mm | 25mm |
| Weight | Around 90g | Around 100g |
Recommend Parts:( NOT Included)
Flight Controller:20x20mm F4 / F7 Flight Controller ( M2)
Brushless Motor:1404/1406/1408/1506/1507/ T-Motor F2203.5 Motor ( 9x9mm / 12x12mm, M2)
Brushless ESC:20x20mm 20-40A 4in1 ESC ( M2)
Propeller:30xx 3 Inch, Max 3 inch ( for 3 Inch Version) ; 40XX 4 Inch Prop, Max. 4 Inch ( for 4 Inch Version)
FPV Camera:20x20mm / 19x19mm Width ( need use 3D Pinting Gasket for Camera)
Lipo Battery:3-4S 550-1300mAh 75-120C Lipo Battery
The Fllowing Parts are Comapatible:( NOT Included)
| 3 Inch Version | 4 Inch Version | |
| FC & ESC | MAMBA F405 Mini MK2 Betaflight F4 FC & F30 30A / 25A 3-4S ESC | 20x20mm MAMBA Stack F722 MINI MK3 F7 FC & 40A |
| Brushless Motor | Eachine Cvatar C1507 1507 3600KV 3-4S | T-Motor F2203.5 2203.5 3550KV 3-4S |
| Propeller | HQProp DP3X4X3 3040 3-blade 3 Inch Prop | GEMFAN Hurricane 4023 4 Inch 3-Blade Prop |
| FPV Camera | Caddx Ratel 2 1/1.8″ Starlight 1200TVL | RunCam Phonix 2 1/2 CMOS 1000TVL |
Package Included:(Optional)
1x APEX3 Pro 150mm Frame Kit
OR
1x APEX4 Pro 190mm Frame Kit
Additional information
| Weight | 0.1 kg |
|---|---|
| Version: No selection | Empty Frame Kit, Replace Arm |
| Inch: No selection | 3 Inch, 4 inch |
