0.6g GEPRC ExpressLRS ELRS 2.4GHz 868/915MHz Low Latency Long Range 500Hz Refresh Rate Nano Receiver for RC Drone

0.6g GEPRC ExpressLRS ELRS 2.4GHz 868/915MHz Low Latency Long Range 500Hz Refresh Rate Nano Receiver for RC Drone
0.6g GEPRC ExpressLRS ELRS 2.4GHz 868/915MHz Low Latency Long Range 500Hz Refresh Rate Nano Receiver for RC Drone
OVERVIEW:
GEPRC ELRS Nano receiver is a new generation remote control system developed based on the ExpressLRS open source project. ExpressLRS sets new standartds for long-range connection, low latency and maximum refresh rate of 500hz.
GEPRC ELRS Nano receivers are available in 915/868MHz and 2.4GHz versions with maximum refresh rate of 500Hz and can be used with GEPRC ELRS-series products or other ELRS-compatible devices.
Specifications:
Brand Name:GEPRC
Item Name:ELRS Nano Receiver
Size:17mm*11mm
Weight:0.6g(receiver only)
Frequency band:915MHz FCC/868MHz EU/2.4GHz ISM
Input voltage??5V
Antenna connector:ipex1
Features:
Small size
0.6g weight
WIFI Upgrade firmware
ELRS open source project, remote control
The operation is simple
Binding:
– The receiver is powered on and off for three consecutive times (within an interval of 1 second);
– Receiver??s LED doing double flashing, indicating that the receiver has entered the binding mode;
– Make the RF Tx module or radio transmitter enter binding status. Once the LED status changes to solid light, the binding is successful.
Package Included:

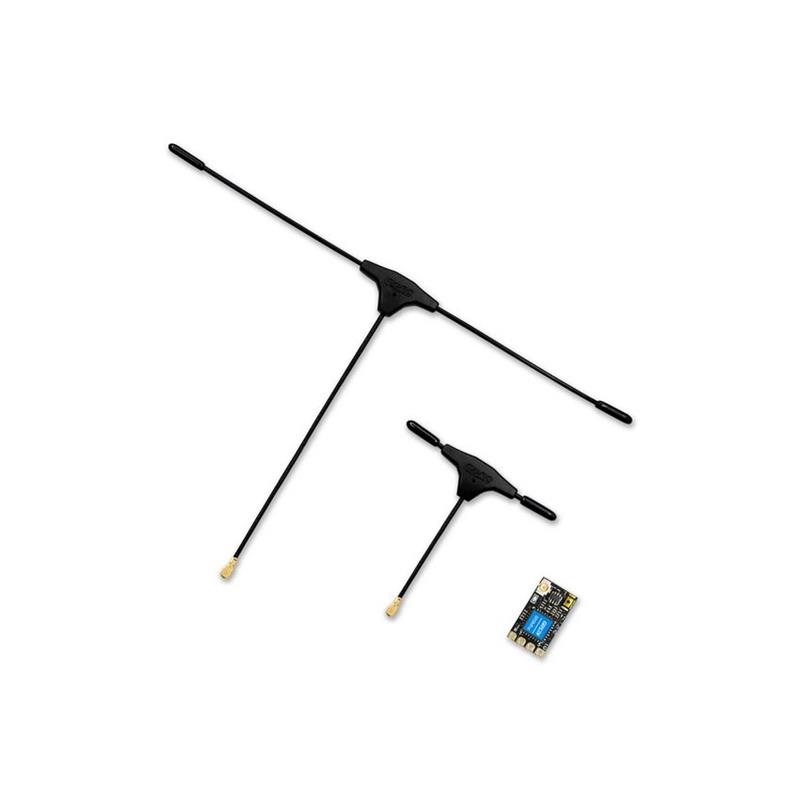

1 x Receiver (Optional Version)
1 x T antenna (Optional Length)
2 x Heat shrink tube
4 x Silicone cable (black, red, yellow, green)
1 x Pin (4 pin)
1 x Instruction manual
