20x20mm iFlight BLITZ Mini F7 Flight Controller / BLITZ Mini E55 4in1 ESC BL_32 for Nazgul5 Evoque F5D / F5X RC Drone FPV Racing
Notice:ESC upgrade into new version like photos showed.
Description:
Brand:iFlight
Model:BLITZ Mini
BLITZ Mini F7 Flight Controller ( Diagram Picture) |
MCU:STM32 F722 Gyro:BMI270 Barometer:DPS310 OSD Chip:AT7456 Flash:16MB (Blackbox flash) UARTS:6 Motor outputs:4x (SH1.0 connector) I2C serial:SDA / SLA pads Smartaudio / IRC Tramp VTX protocol supported LED controller:Yes Beeper pad:Yes Firmware target:IFRC-IFLIGHT_BLITZ_F722 Mount pattern:20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws Dimensions:30.5×27 mm Weight:5g Wiring suggestion: – UART 1 for VTX HD / Analog – UART 2 for a Receiver – UART 3/4/5 for GPS or other sensors that require a serial port – UART 6 for ESC Telemetry Top Features: – Improved circuit design, better components and lower electrical noise! – DJI HD VTX Connector (Plug-and-Play / No soldering required) – FC indicator LEDs for visual debugging |
New BLITZ MINI E55 4IN1 55A 2-6S ESC ( Diagram Picture) |
Input Voltage:2-6S Max. Continuous Current:55A Max. Burst Current:60A MCU:G071 BEC:No Firmware:BLHeli32 Current Sensor:Yes Telemetry:Supported Target:IFLIGHT_BLITZ_G071_01 32.9 Mounting Dimensions:20 x20 mm/??4mm Dimensions:35x42mm Weight:11.3g Protocol:Supports DShot DShot150/300/600/MultiShot/ OneShot etc |
Package Included:
Mini F7 FC Version | 1x BLITZ Mini F7 V1.1 Flight Controller 1 set of FC connectors 1 set silicon grommets |
ESC Version | 1x BLITZ Mini E55 4IN1 ESC 1 set Power cables & ESC signal wires |

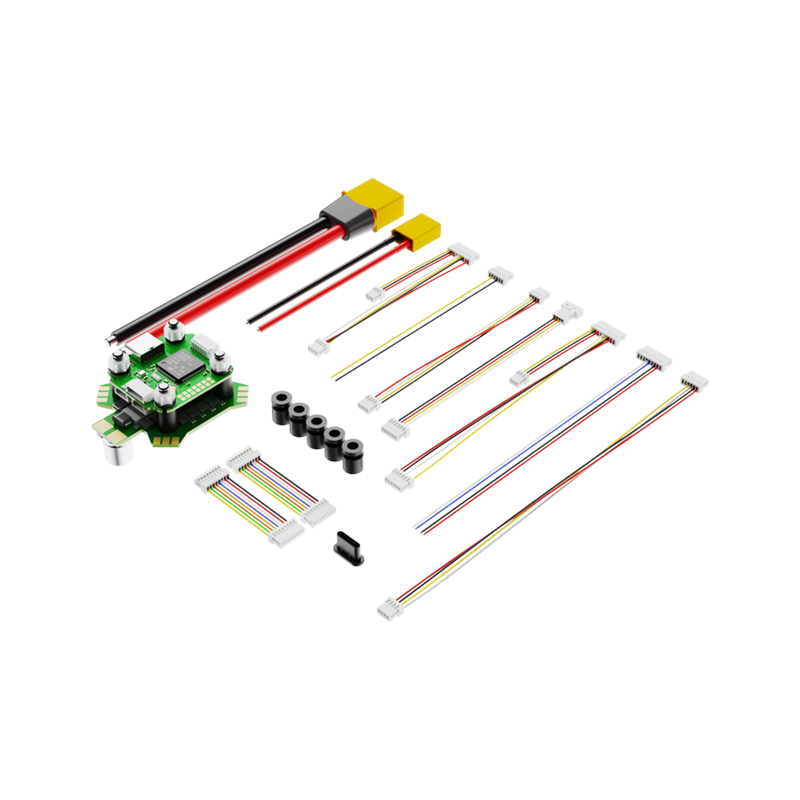

FC + ESC | 1x BLITZ Mini F7 V1.1 Flight Controller 1x BLITZ Mini E55 4IN1 ESC 1set x silicon grommets 1set x wire harness for F7 FC |
Additional information
Weight | 0.015 kg |
---|---|
Version: No selection | ESC, F7 mini FC, FC+ESC |
