HappyModel ES24TX Pro 2.4GHz 1000mW ExpressLRS ELRS Micro TX Module with Cooling Fan RGB LED Module for RC Drone

HappyModel ES24TX Pro 2.4GHz 1000mW ExpressLRS ELRS Micro TX Module with Cooling Fan RGB LED Module for RC Drone
HappyModel ES24TX Pro 2.4GHz 1000mW ExpressLRS ELRS Micro TX Module with Cooling Fan RGB LED Module for RC Drone
OVERVIEW:
ES24TX Pro Micro ExpressLRS TX module is an upgraded version of ES24TX module.

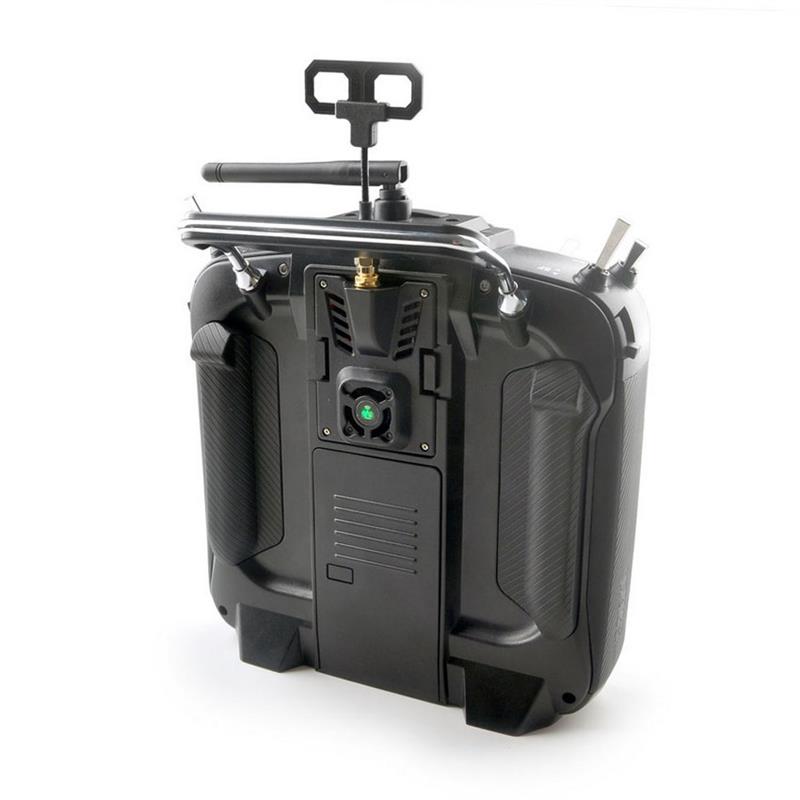

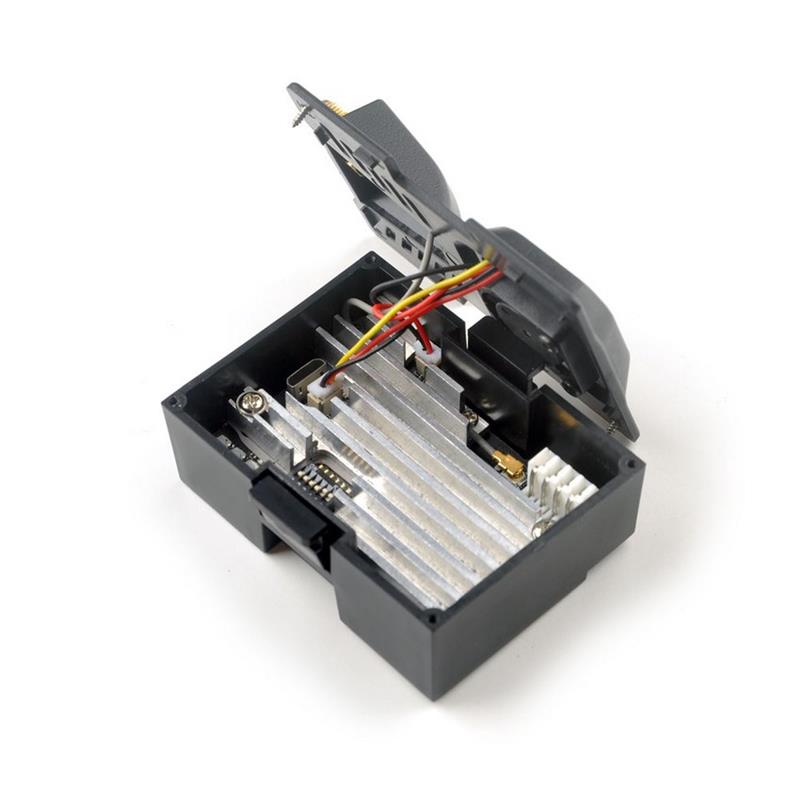

The maximum output power can reach 1000mw, and the cooling fan and RGB LED module have been pre-installed. This pro version of Micro TX module supports most OpenTX radio transmitters with Micro JR bay. And this time the ES24TX Pro module has been fully assembled before leaving the factory, and it is really plug-and-play when you get it.
Specifications:
Brand Name:Happymodel
Item Name:ES24TX Pro Micro TX Module
Model:ES24TX Pro
Regulatory Domain:ISM2400
MCU:ESP32(main),ESP8285(aux, as espbackpack)
RF chip:SX1281IMLTRT
JR standard 5pin socket
Frequency Range:2400 MHz to 2500 MHz
Maximum receive refresh rate:500Hz
Minimum receiver refresh rate:25Hz
RF Output Power:>30dBm
Power supply voltage:5v~10v
Weight:51gram(without antenna??
Dimension:70*49*32.5 mm
Antenna gain:4.18dBi
Firmware target:HappyModel_ES24TX_Pro_Series_2400_TX
Note:
The update program can be updated directly via USB or WIFI, and the firmware needs to be compiled in ExpressLRS Configurator
The function of RGB LED will be improved in the new version of ExpressLRS 2.0. At present, the lighting of RGB LED is realized by changing the refresh rate of the packet.
Package Include:
1 x ES24TX Pro Micro TX Module
1 x 2.4GHz Moxon Antenna
