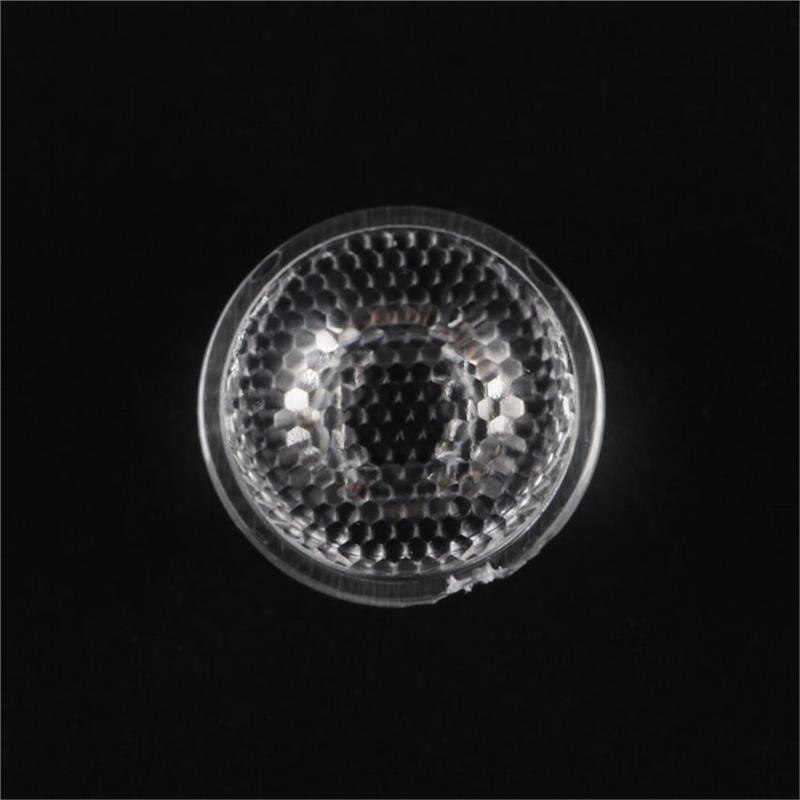

CONVOY 17mm 60 degree TIR lens for H1 with 5050 SST40 XML2 LED Flashlight
Specifications:
| Lens diameter | 17mm |
| Lens height | 9.7mm |
| Edge extension thickness | 1.2mm |
| Inner diameter | 5.0mm |
| Light angle | 20 degrees, 30 degrees, 45 degrees, 60 degrees, 20*60 degrees, 30*60 degrees |
| Light transmittance | 93% |
| Lens material | Imported PMMA |
Features:
1. There is a card slot at the bottom of the lens to match the 5050 size LED.
2. This lens is specially designed for XML2/XHP50 high-power LED lights and NICHIA LEDs, and can also be applied to 5050 LEDs of other brands;
Widely used in outdoor wall washer and projection lamps, etc., it can also be used in indoor spotlights, PAR lamps, ceiling lamps, etc.
Package Included:
1 x TIR Lens
Additional information
| Weight | 0.002 kg |
|---|
