VEIKO Aluminum Alloy 35MM Hinge Boring Hole Drill Guide Hinge Jig with Clamp For Woodworking Cabinet Door Installation
Description:
VEIKO Aluminum Alloy 35MM Hinge Boring Hole Drill Guide Hinge Jig with Clamp For Woodworking Cabinet Door Installation
Make Woodworking Work Easy, Professional
No Measuring and Saving Time
Specifications:
| Material | Aluminum Alloy |
| Hole Opener Size | 35MM |
| Drill Bit | 2MM |
| Clamping board thickness | 15-25MM |
| Color | Red+Black |
| Hinge offsets | 3/4/5/6MM |
Features:
Three groups of hole spacing:45mm to 9.5mm/48mm to 6.3mm/52mm to 5.5mm

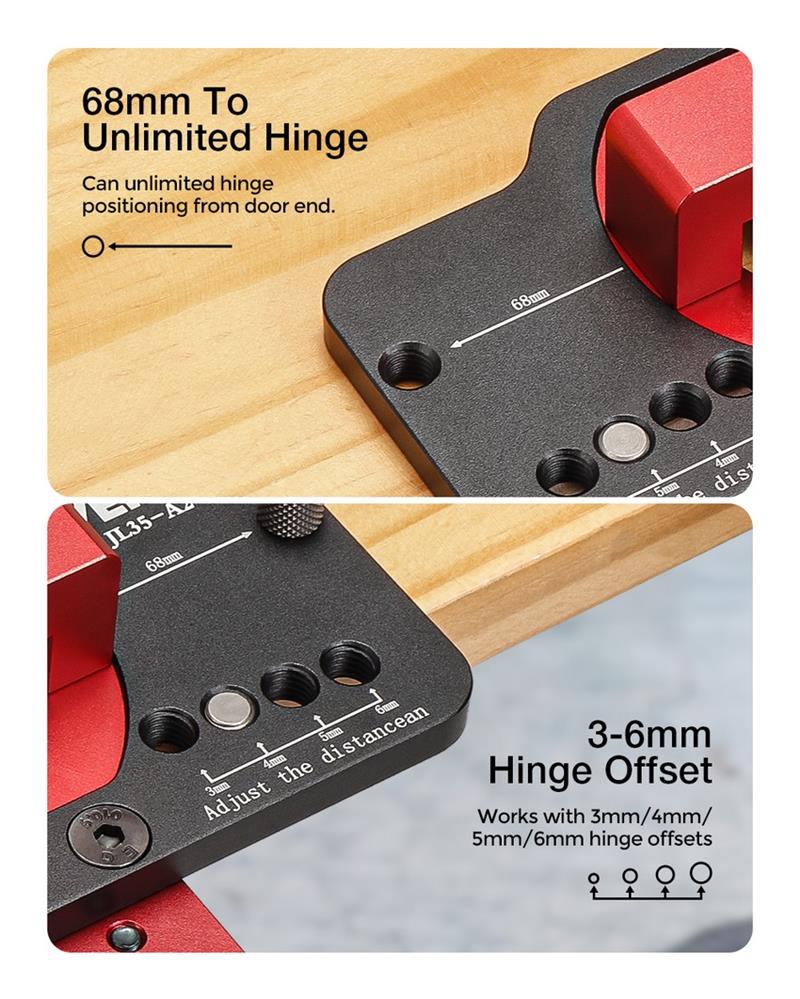

1. 68mm to unlimited hinge positioning from door end
2. Works with 3mm, 4mm, 5mm, 6mm hinge offsets
3. All aluminum alloy products, beautiful and durable
4. 35MM hinge hole, small drill bit positioning hole
5. Equipped with a limit ring, the drilling depth can be adjusted
6. Equipped with universal clamp, stable and strong clamping
7. The drill sleeve adopts precision bearing guide drill sleeve, which makes the hole drilling more smooth and simple
Package Included:
| 1X | Hinge Boring Hole Drill Guide Body |
| 2X | Drilling Guide Locator |
| 1X | 35mm Hole Opener |
| 1X | 2mm Drill Bit |
| 2X | Wrench |
| 1X | Bearing |
You may like:
35mm Hole Saw Cutter ID:1975139
More Details:
Additional information
| Weight | 0.9 kg |
|---|
