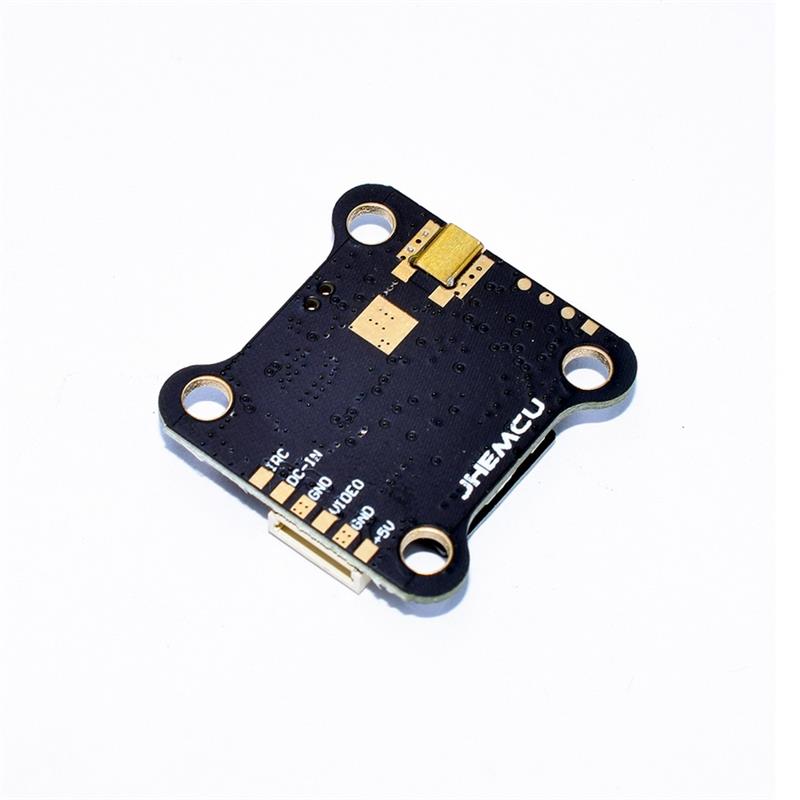

JHEMCU VTX20-600 5.8Ghz 40CH PIT/25mW/100mW/200mW/400mW/600mW IRC FPV Transmitter 20x20mm MMCX For RC Racing Drone
Description:
Brand:JHEMCU
Model:VTX20-600
Input voltage:7-26V
Output voltage and current:5V 1A
Number of channels:40CH
Transmitting power:PIT/25/100/200/400/600mW
Interface:MMCX
Control protocol:VTX IRC Tram
Dimensions:27x27mm
Installation hole distance:20x20mm
Installation aperture:3mm
Weight:3g
Instructions:
The image transmission supports the IRC Tram protocol to adjust the channel and power of the image transmission through the OSD and remote control, and also supports the switch of the power and channel through the button of the image transmission.
Short press; select CH1-8 cyclically, and the number of times the green light flashes represents the number of CHs.
Long press for 3 seconds; after long press for 3 seconds, the blue light will light up, continue to press and hold to cycle to select the frequency band FR A-B-E-F-R. Corresponding to the blue light flashes 1, 2, 3, 4, 5 times.
Long press for 6 seconds; after long press for 6 seconds, the red light will light up, continue to press and hold, cycle to select the power 25-100-200-400-600mW, corresponding to the red light flashes 1 time, 2 times, 3 times, 4 times, 5 times .
Package Included:Optional
1x VTX20-600 VTX
1x Antenna
1x Cable wire
Additional information
Weight | 0.003 kg |
---|---|
Version: No selection | Standard Version |
