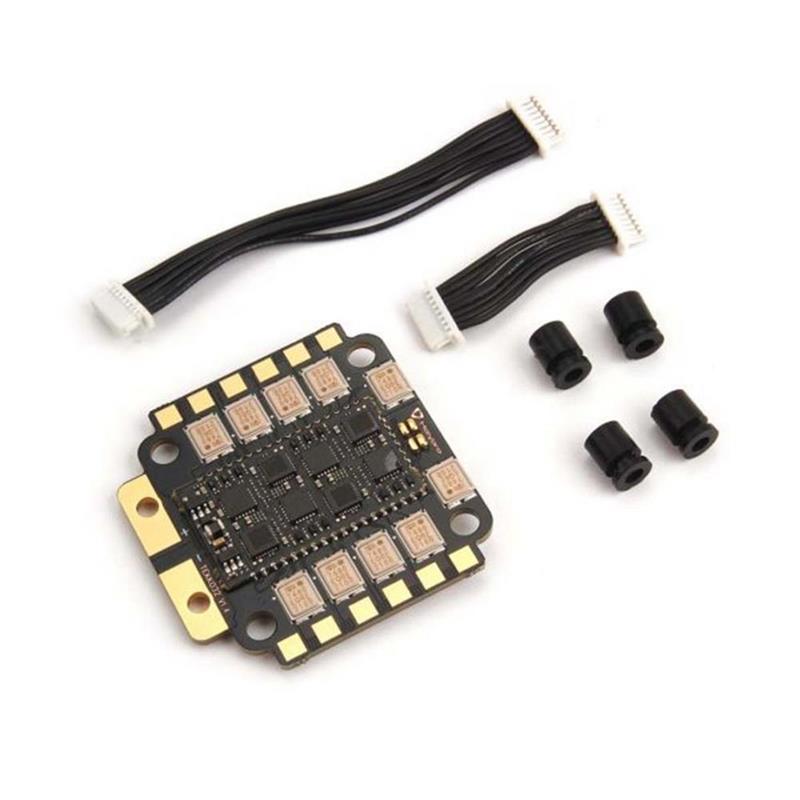

Holybro Tekko32 F4 Metal 65A Blheli_32 4-6S 4 IN 1 Brushless ESC 30.5×30.5mm for RC Drone FPV Racing
Features:
F4 MCU / BLHELI32 / Metal case mosfet / PWM output 96K / 4~6S
The New BLHELI32 ESC adapted the F4 MCU, which will provide a smoother control and faster response speed.
Specification:
F4 MCU with BLHELI32 firmware
Maximum PWM output upto 96K (default 48K)
Amperage meter scale ratio has been adjusted to 168.
The 4in1 has onboard analog current sensor, and TLM function (then no current reading over TLM)
Uses metal case mosfet for better heat dissipation
No output BEC
Supports Lipo 4-6S
Extra capacitor needed for 6s (1000uf 35v for 6s usage.)
Dimensions:43 x 44mm
Mounting holes:30.5?G30.5mm(M4)
Weight:15.8g
Notice:
The air flow is very important if you want to run this 4in1 in high current.
The input cable (from Lipo to 4in1) should be at least 12AWG and well soldered.
Package Included:
1x Tekko32 F4 Metal 4in1 65A ESC
4x M3 Anti-Vibration Silicone Grommet Insert
1x Electrolytic capacitor:1000uF 35v
1x 8pin to 8pin 1mm pitch 65mm cable
1x 8pin to 8pin 1mm pitch 25mm cable
Downloads:Tekko32 F4 Metal 4in1 ESC(65A) SPEC V1.4
Some Tips:BLHeli_32 ESC Firmware Overview
GitHub
Additional information
| Weight | 0.054 kg |
|---|
