OVERVIEW:
The EP24S 2.4GHz ELRS series receiver is based on the open source architecture and program of ExpressLRS. The receiver uses ESP8285 MCU, so you can upgrade the firmware through WIFI. As long as the receiver is powered on and the remote control is turned off, you can find ExpressLRS after a while Connect to this hotspot through a computer or mobile phone. The connection password is expresslrs and it will automatically enter the upgrade page. If you don??t have one, you can manually visit 10.0.0.1 to upload the receiver firmware. Of course you can upgrade the firmware with general flight controller and external USB-TTL.
Because the ELRS receiver uses low-latency and high-refresh RF chips, it is very suitable for FPV competitions and remote FPV. At the same time, these receivers have ultra-light and ultra-small sizes, so they are very suitable for Tinywhoop.
Regarding the choice of receiver firmware, our default shipment is DIY_2400_RX_ESP8285_SX1280. The receiver firmware content of each manufacturer is basically the same, but the name is different (except BETAFPV, which has different circuits).
Specifications:
Brand Name:JHEMCU
Item Name:EP24S RC Receiver
Model:EP24S

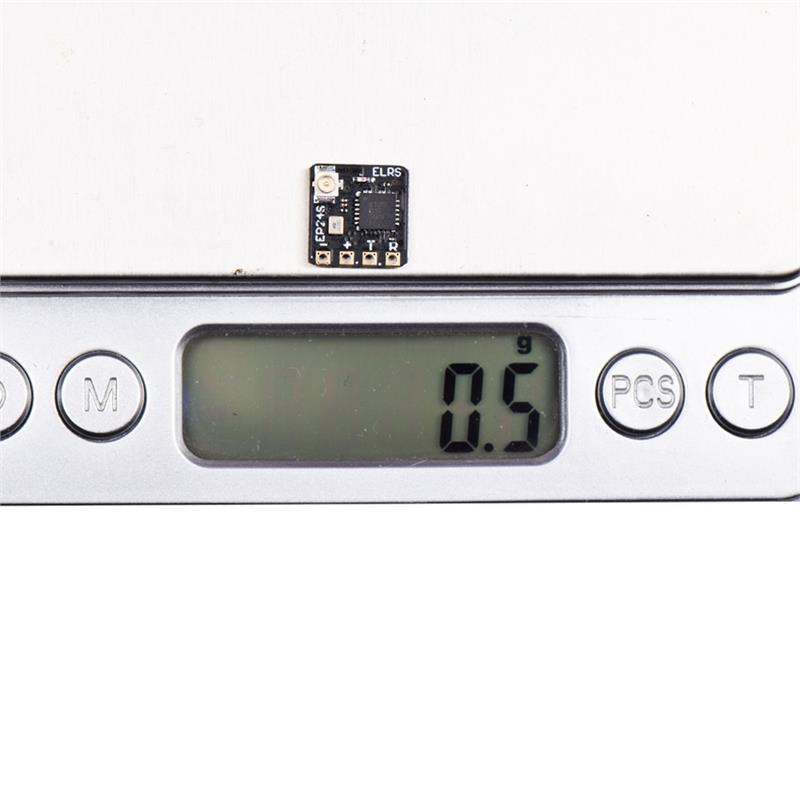

Weight:0.5g (without antenna)
Size:11*11*3 mm
2.4G ISM type
ESP8285 MCU
SX1280IMLTRT RF
Frequency range:2400 MHz To 2500 MHz
Maximum receiving refresh rate:500Hz
Minimum receiving refresh rate:25Hz
Working voltage:5V
Weight:0.5g (without antenna)
Working Agreement:CRSF (Betaflight)
Peak gain:3.16dB
EP24S:Half-wave dipole omnidirectional T-shaped antenna
Linking Binding steps:
– After the receiver is connected to the flight controller, connect the USB to power the flight controller. After inserting the USB for the first time, disconnect the USB as soon as the LED on the receiver turns off. Repeat the operation twice, when the USB is inserted for the third time, the LED will start to flash double, and the receiver will enter the code matching mode.
– After correctly connecting the 2.4G ELRS tuner module and the remote control, copy the ELRS.LUA file to the SD card in the remote control, the directory is SD Card/Scripts/tools, and then run ELRS.LUA for Bind operation.
– After the binding is successful, the LED on the receiver will become steady on, and the telemetry signal can be received at the same time.
Indicator status:
Double flash:pairing mode
Slow flashing:No transmission signal is received
Steady on:receive the transmit signal
Fast flashing:WIFI upgrade mode
Package Include:
1 x EP24S RC Receiver
1 x T antenna
4 x Wire
