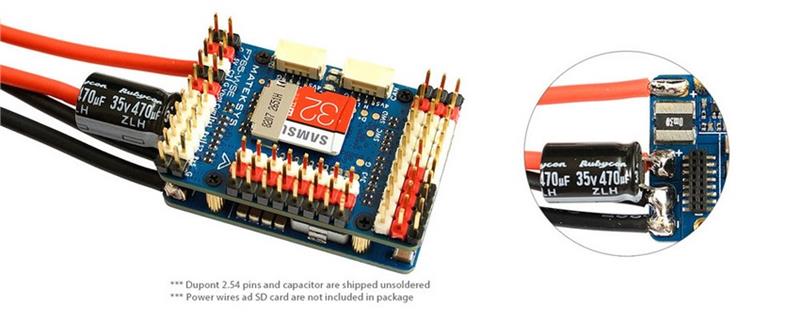

Matek Systems F765-WSE STM32F765VIh6 Flight Controller Built-in OSD for RC Airplane Fixed Wing
Description:
MCU:STM32F765VIH6
IMU:ICM-42688-P
Current sensor:220A
Barometer:DPS310
UARTs:6.5
CAN:1
USB:External Type-C
Size:44* 29*14.5mm
Firmware:ArduPilot MatekF765SE / INAV MatekF765SE
Features:
– MCU STM32F765VIH6, 216 MHz, 2MB Flash
– IMU ICM42688-P
– Barometer DPS310
– OSD AT7456E
– MicroSD BlackBox (SDIO)
– 6.5x UARTs, 2x I2C, 1x CAN .
– 6x ADC (Vbat, Current, VB2, CU2, RSSI, AirSpeed)
– 12x PWM outputs (10x Dshot)
– Switchable dual camera inputs
– Switchable 9V(12V) outputs
– 6.8~30V DC IN (2~6S LiPo)
– 220A High-precision current sense
– BEC 5V 2A cont. 3A Peak for FC and peripherals
– BEC 9V 2A cont. 3A Peak 12V option for Camera/VTx
– BEC Vx 8A cont. 10A Peak for servos
Vx= 5V Default, 6V or 7.2V option
– LDO 3.3V 200mA cont.
Package Included:
1 x Matek Systems F765-WSE STM32F765VIh6 Flight Controller Built-in OSD for RC Airplane Fixed Wing
Additional information
| Weight | 0.035 kg |
|---|
