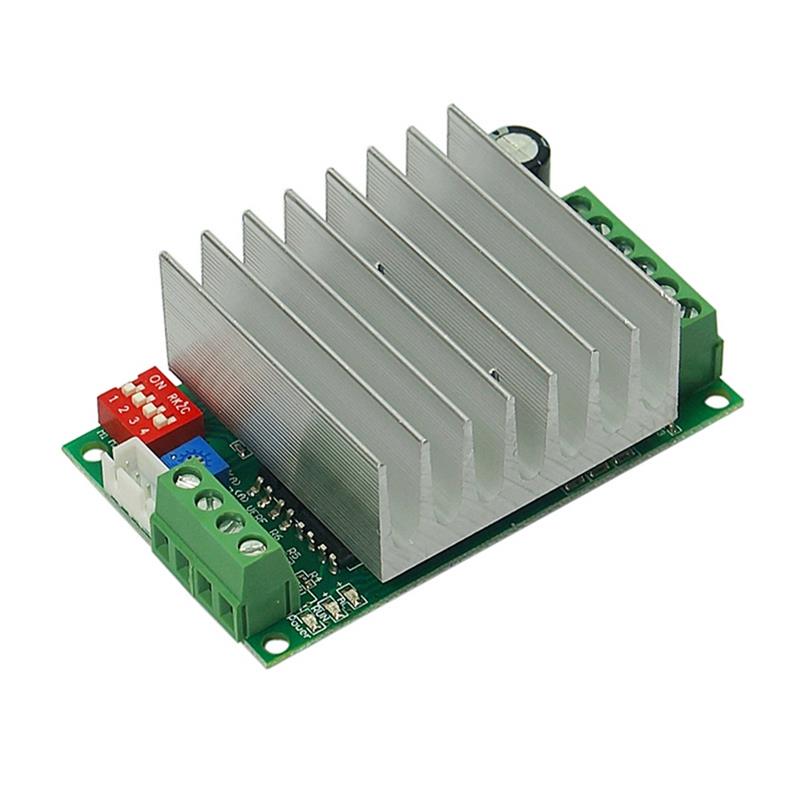

TB6600 4.5A CNC Stepper Motor Driver Stepper Motor Controller Board for CNC Router Engraving Machine

TB6600 4.5A CNC Stepper Motor Driver Stepper Motor Controller Board for CNC Router Engraving Machine
Description:
1) Operating voltage DC 10V-45V. DC32V switching power supply is recommended.
2) high-speed optical coupling 6N137, ensure high speed without losing step.
3) Toshiba’s new high current, high voltage TB6600HG new original chip, there are low-pressure shut-off, overheating parking and over-current protection circuit, short-circuit protection and increased compared to TB6560.
4) Rated maximum output reached:?? 4.5A.
5) for 4.2A 42,57,86 within the two-phase / four-phase / four-wire / six-wire stepper motor.
6) Automatic half current function.
7) Subdivision:full step, half step, 1/4-step, step 1/8, 1/16-step, up to 16 segments.
Feature:
1. The output current is steplessly adjustable to meet your various application requirements.
2. Automatic half-flow function. It is also equipped with an automatic half-flow switch, which is easy to use.
3.Using 6N137 high-speed optical lotus root to ensure high speed without losing step.
4. The subdivision setting instructions are printed on the back of the board.
5. Use enlarged radiator, good heat dissipation.
6.With output short circuit protection function, worry-free use.
7. Adopting the common anode input mode, there are two input terminals, the wiring is more convenient.
Specification:

Package Included:
1 X Stepper Motor Driver
