Machifit Aa Eb Lathe Quick Change Tool Post Holder Set WM210V&WM180V&0618 12x12mm Tool Rest for Swing Over Bed 120-220mm
Specification:
| Type(Optional) | Aa(45#steel)/Eb(304 stainless steel) |
| Repeatability [mm] | 0.01 |
| Recommended top slide width [mm] | 45-60 |
| Adjustable turning tool height [mm] | 4-12 |
| Turning diameter [mm] | 120-300 |
Feature:
-Process workpieces of various angles. Using the dial, the tool holder can be rotated by 9?? or multiple angles of 9?? each time. Can process various angle workpieces.
-Height adjustable. The tool holder uses adjusting screws and nuts to adjust the installation height of the props, which is easy to operate.
-High efficiency. It only takes a few seconds to change the tool once, and only the tool holder is required to change the processing procedure. high working efficiency.
-High accuracy. The positioning accuracy of the replacement tool post is high, and the resetting accuracy is within 0.01m.
-High stability. The quick-change tool post is set at one time, and the processing stability is high.
-Application:Can be installed on AT125??CJ0618, BV20, SINO210V lathes, etc.
For turning diameter is from 120mm to 220mm(4.7-8.7

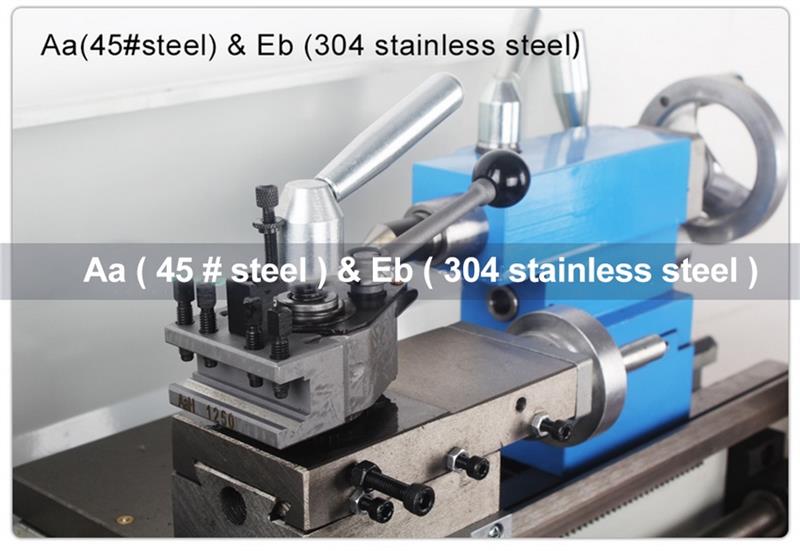

The tool post can fit 180mm(7′) swing bench lathe well. From cross slide surface to spindle center line height is 56mm.

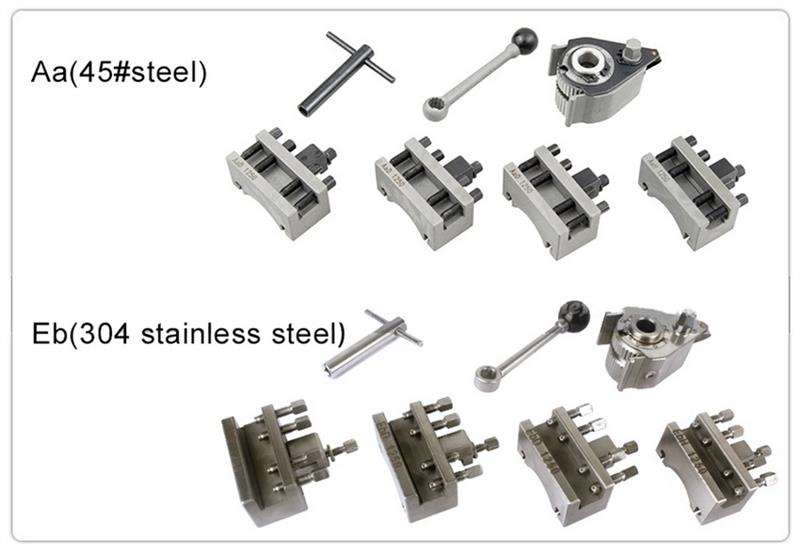

Package Included:(Aa(45#steel)/Eb(304 stainless steel) optional)
| 1 X | Basic Body |
| 3 X | Steel Holder(AaD/EbD 1250) |
| 1 X | Steel Holder(AaH/EbH 1250) |
| 1 X | Wrench |
| 1 X | Square Key |
More Detail:
Additional information
| Weight | 1.856 kg |
|---|---|
| The Type: No selection | Aa, Eb |
