H5V3M/H5V4D 5V 315MHz 433MHz Wireless Remote Control Receiver Module Superheterodyne RF Board

H5V3M/H5V4D 5V 315MHz 433MHz Wireless Remote Control Receiver Module Superheterodyne RF Board
Description:
The remote control receiving module has good consistency, no debugging, low cost, and is the choice of RF remote control products. The module adopts the new RF IC, which has the characteristics of small size, high sensitivity, low power consumption, low second harmonic, etc., and can pass FCC CE. ROSH and other certifications. This module can replace the traditional regenerative superheterodyne remote control solution.
Features:

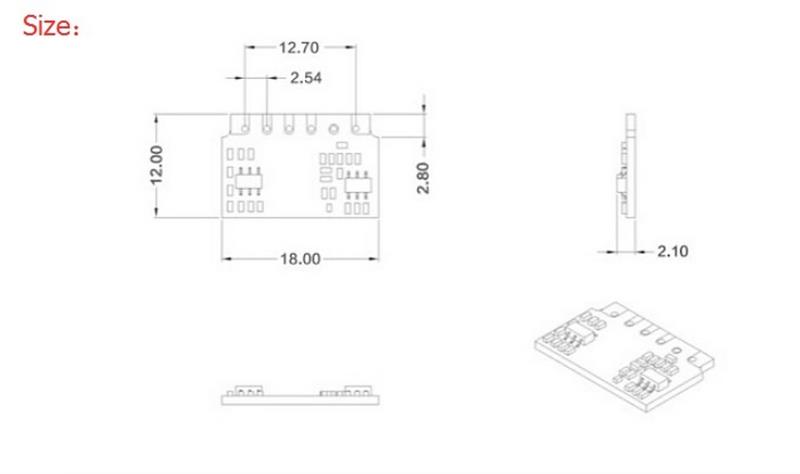

Small size, only 18*12*2.1mm
Low voltage, 2.7-5.3V (typical 3V)
Low power consumption, 0.28mA current
Pure spectrum, built-in harmonic suppression circuit
High speed, maximum 4.8kbps, capable of large data transmission
Good environmental adaptability, working normally at -20-70 degrees Celsius
Superheterodyne demodulation, anti-interference
2mm thin for easy integration
Parameter:
H5V3M 5V 315MHz
Operating frequency:315MHz
Sensitivity:-105dBm
Modulation method:ASK amplitude modulation
Operating Current:1.9mA
Operating voltage:4.5~5.5V
Working temperature:-40~80 degrees Celsius
H5V4D 433MHz
Working frequency:433MHz
Receive broadband:3MHz
Sensitivity:-102dBm
Working current:0.28mA
Modulation method:ASK amplitude modulation superheterodyne
Working voltage:2.7-5.3V
Application:
This product is used in remote control toys, remote controls, burglar alarms, wireless anti-lost devices, remote control switches, remote control lamps, electric car alarms, etc.
Package included:
1 x Wireless Remote Control Receiver Module
