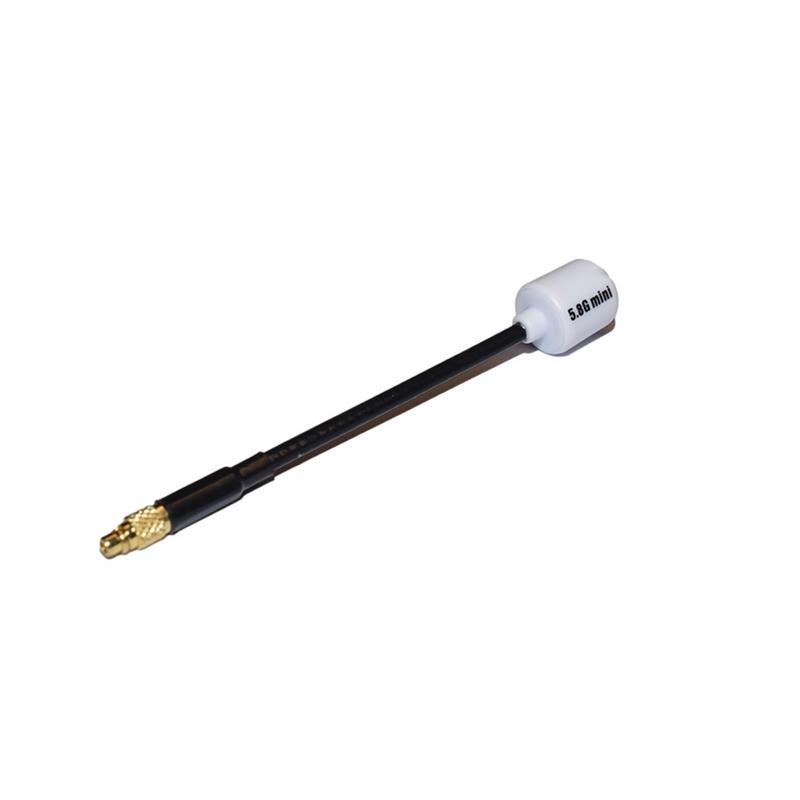

2PCS AuroraRC MINI105 5.8GHz 2.5DBi Omni FPV Antenna LHCP SMA/RP-SMA/MMCX/UFL for RC Drone Airplane
Specifications:
Brand Name:AuroraRC
Item Name:MINI105
Shell Material:Imported PC + ABS
Weight:1.4g/2.6g/4.6g
Antenna Length:80mm
Frequency:5.8 GHz
Gain:2.5 Dbi
Bandwidth:500 MHz (5.5-6.0 GHz)
Matching:VSWR < 1.2 (at center frequency)
Axial ratio:<3db
Center Frequency:5750MHz
Radiation Efficiency:98%
Polarization:LHCP
Color:Purple,Black,White (Optional)
Connector:SMA,RP-SMA,Straight MMCX,MMCX-L,UFL (Optional)
Features:
– Body adopt imported PC+ABS material, can withstand high strength impact.
– Root reinforcement design 360?? protection.
– Low feeder loss,easy to install,can be bent at any angle and maintain.
– Double-jacket semi-rigid cable for heavy impact resistance.
RHCP Version, Click Here
Package Included:
2x AuroraRC MINI105 5.8G 2.5DBi Omni Antenna
Additional information
| Weight | 0.01 kg |
|---|---|
| Model: No selection | MMCX, MMCX-L |
| Color: No selection | Black, White |
