RETEVIS RT95 Car Two-Way Radio Station 200CH 25W High Power VHF UHF Mobile Radio Car Radio CHIRP Ham Mobile Radio Transceiver
Note:The programming line needs to be purchased by yourself, you can >>>Click here<<< to buy
Feature:
Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation

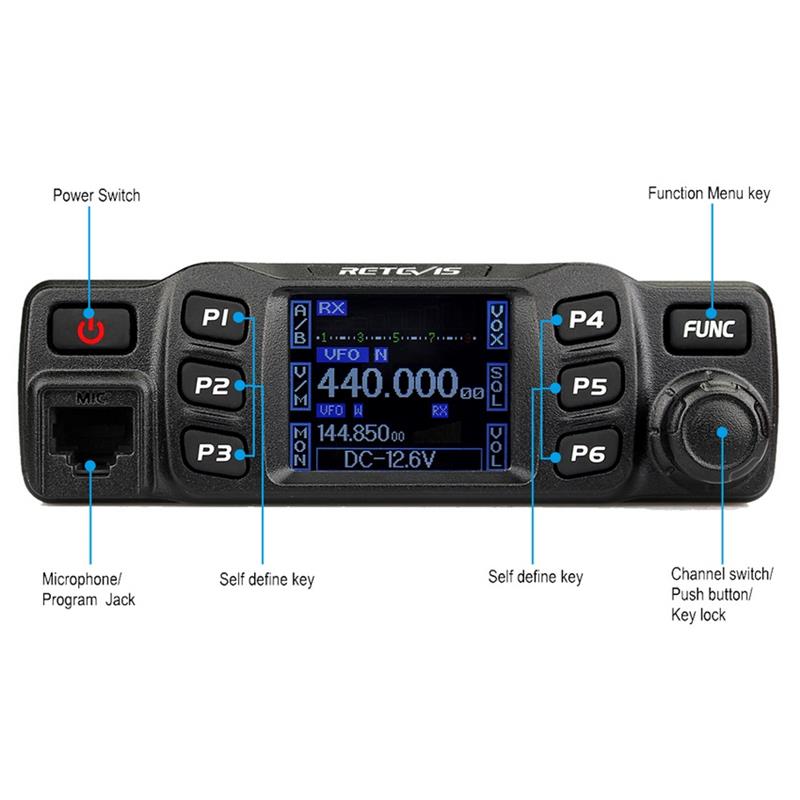

180 degree rotatable TFT LCD display
Full alloy body for heat radiation
Amateur mode and professional mode for different operation requirement
Distribute buttons reasonably, convenient for operation
Separate band width setting for each single channel, Wide 25K, Middle band20K, Narrow band 12.5K
200 programmable memory channels, identified by editing name
Separate CTCSS, DCS, DTMF, 5Tone setting for each single channel,rejecting extra calling from other radios
Various scan functions including CTCSS/DCS scan function
Smart menu control and PC programming control
Voltage level protection
LCD brightless control
Automatic power on function
Main unit and microphone key lock function
5Tone signaling for data transfer,alarm, all call, ANI, remote kill, remote waken
DTMF-ANI or 5Tone-ANI for automatical calling recognition
Password function
Dualwatch function
Talk around function
Frequency reverse function
Offset function
Specifications:
GENERAL | ||
Frequency Range | VHF:144-148MHz UHF:430~440MHz | |
Number of Channels | 200 channels | |
Channel Spacing | 25K (Wide Band) 20K(Middle Band) 12.5K (Narrow band) | |
Phase-locked Step | 2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 20KHz, 25KHz, 30KHz, 50KHz | |
Operating Voltage | 13.8V DC??15% | |
Squelch | Carrier/CTCSS/DCS | |
Frequency Stability | ??2.5 ppm | |
Operating Temperature | -20??~+60?? | |
Dimensions(mm) | 124 (W) x 163(D) x 39 (H) | |
Weight | about 0.64Kg | |
TRANSMITTER | ||
Wide band | Narrow band | |
Sensitivity (12dB Sinad) | ??0.25??V | ??0.35??V |
Adjacent Channel Selectivity | ??60dB | ??60dB |
Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) |
Hum & Noise | ??45dB | ??40dB |
Audio distortion | ??5% | |
Audio power output | >2W@8 | |
RECEIVER | ||
Wide band | Narrow band | |
Power Output | 25W / 15W / 5W | |
Modulation | 16K??F3E | 11K??F3E |
Adjacent Channel Power | ??70dB | ??60dB |
Hum & Noise | ??40dB | ??36dB |
Spurious Emission | ??60dB | ??60dB |
Audio Response | +1~-3dB(0.3~3KHz) | +1~- dB(0.3~2.55KHz) |
Audio Distortion | ??5% |
Package Included:
1x Mobile radio
1x Power cable
1x Handheld mic
1x One pack of screw and accessories
1x User’s manual
Additional information
Weight | 0.5 kg |
---|---|
Plug: No selection | EU Plug, US Plug |
