RBR/C B6 2.4GHz 6CH Radio Transmitter with B6A/B6B RC Receiver 160A ESC Battery Set for ZD JLB RGT RC Car Boat Tank Model

RBR/C B6 2.4GHz 6CH Radio Transmitter with B6A/B6B RC Receiver 160A ESC Battery Set for ZD JLB RGT RC Car Boat Tank Model
RBR/C B6 2.4GHz 6CH Radio Transmitter with B6A/B6B RC Receiver 160A ESC Battery Set for ZD JLB RGT RC Car Boat Tank Model
Description:
Brand Name:RBR/C

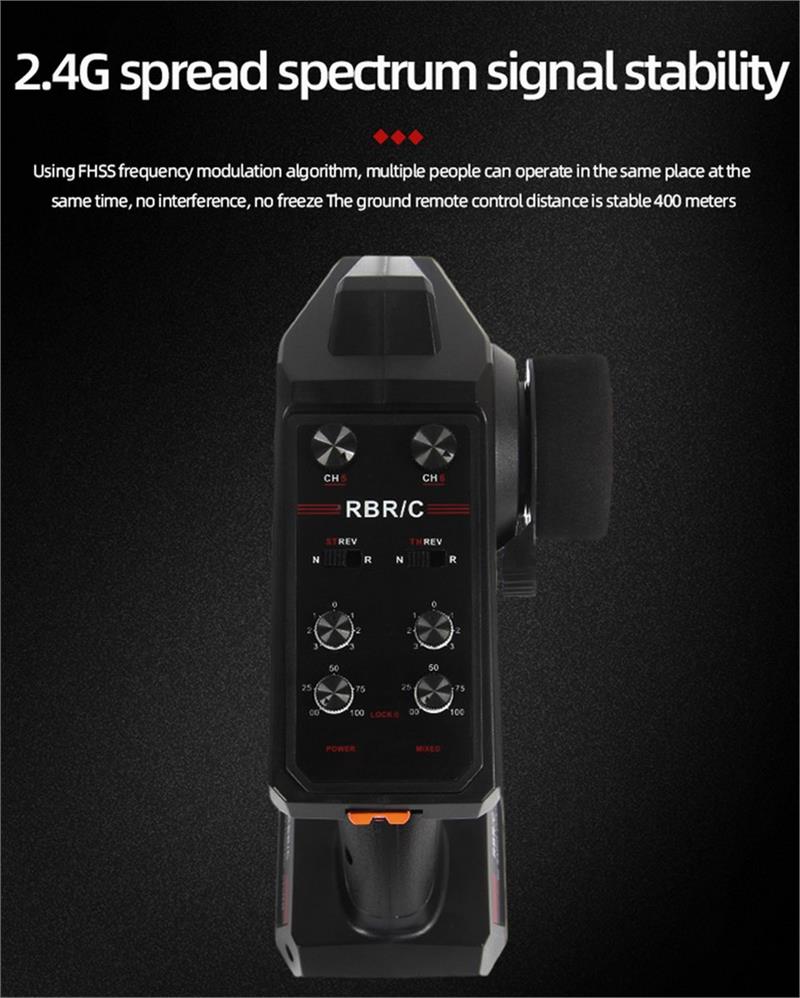

Item Name:B6 Radio Transmitter with Receiver Set
Model:B6
Receiver Model:B6A (4+2CH)/B6B (6CH)
Package Weight:676g
Package Size:23*18*11 cm
Features:
Fine craftsmanship
Standard sponge wheel,exquisite electroplating onhand wheel PVC high-grade panel. Every detail is carefully processed.
Ergonomics
Comfortable silicone strips on both sides Exquisite leather pattern design. Comfortable to the hand, not easy to sweat.
Large battery compartment
Innovative removable battery 25 lithium battery can be inserted directly. Convenient and practical.
Detailed instructions
Include detailed instructions. Various function settings. How To operate at a glance.
ESC:
Forward, reverse:continuous current / peak current:34A /160A
Supported voltage range:2-3S lipo
Applicable models:1/12 and below, off-road vehicles, short trucks, trucks, climbing vehicles
Supported motor T number:
2s lipo /6s Ni-mh battery:280/370/380 ,RPM<30000@7.2V
3s lipo /9s Ni-mh battery:280 / 370/380 ,RPM<20000@7.2V
Internal resistance (single bridge arm) forward rotation:0.0002?? reverse rotation:0.0002??
BEC:1A /5V (Linear voltage regulation mode)
Size/weight:42/28*17mm 34g
Cooling mode:no fan
Operation mode:one-way, two-way climbing
Note:
4CH+2CH receiver means the receiver has 1,2,3,4 CH,but the third and fifth CH use third CH at the same time,the fourth and sixth CH use fourth CH at the same time. For example,when two lights links with the third and fifth CH,control the third CH,these two lights will be light at the same time.
Package Included:
1 x B6 Radio Transmitter
1 x B6A/B6B RC Receiver (Optional Version)
1 x 160A ESC
1 x Battery

Additional information
