AuroraRC ALEX-4 4 Inch 193mm Wheelbase Carbon Fiber LR Frame Kit Micro Long Range Support 16×16/ 2020 / 25.5×25.5mm FC Mount Hole for RC FPV Racing Drone
Specification:
Brand:AuroraRC
Item Name:ALEX-4 4 Inch Carbon Fiber Frame Kit

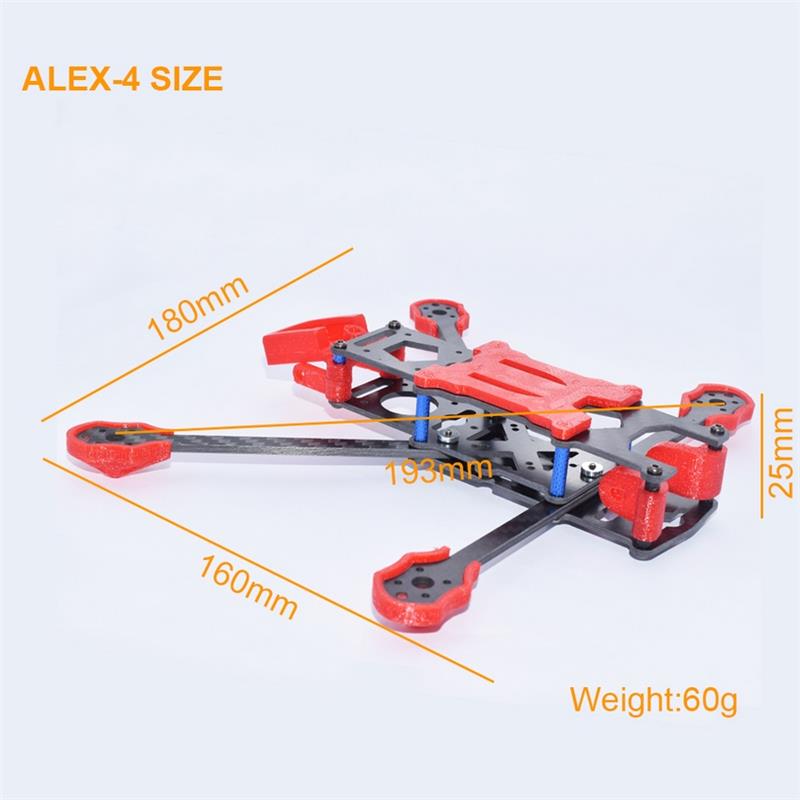

Wheelbase:193mm
Aluminum Alloy??7075
Carbon Fiber:T700 3K
Top Plate:2mm
Medium Plate:2mm
Bottom Plate:2mm
Arm Plate:3mm
Weight:60g
Mounting Size:
FC Mounting:16X16/20?G20/25.5×25.5/26.5?G26.5mm??M2??
Motor Mounting:12mm
Camera Spacing:19mm/20mm
Rated Volitage(Recommendation):4S~6S
Recommended Equipment (Not Included):
FC:JHEMCU F405AIO(25.5X25.5Mmm)
ESC:AIO ESC(20-35A)
FPV System:Caddx VISTA HD FPV 20x20mm 5.8GHz VTX
Motor:1505 3450KV Brushless Motor
PROP:Gemfan 4024/ HQ Prop T4X2.5
Package Included:
1 x ALEX-4 Frame Kit
Additional information
| Weight | 0.06 kg |
|---|---|
| Color: No selection | Black, Blue, Magenta, Yellow |
