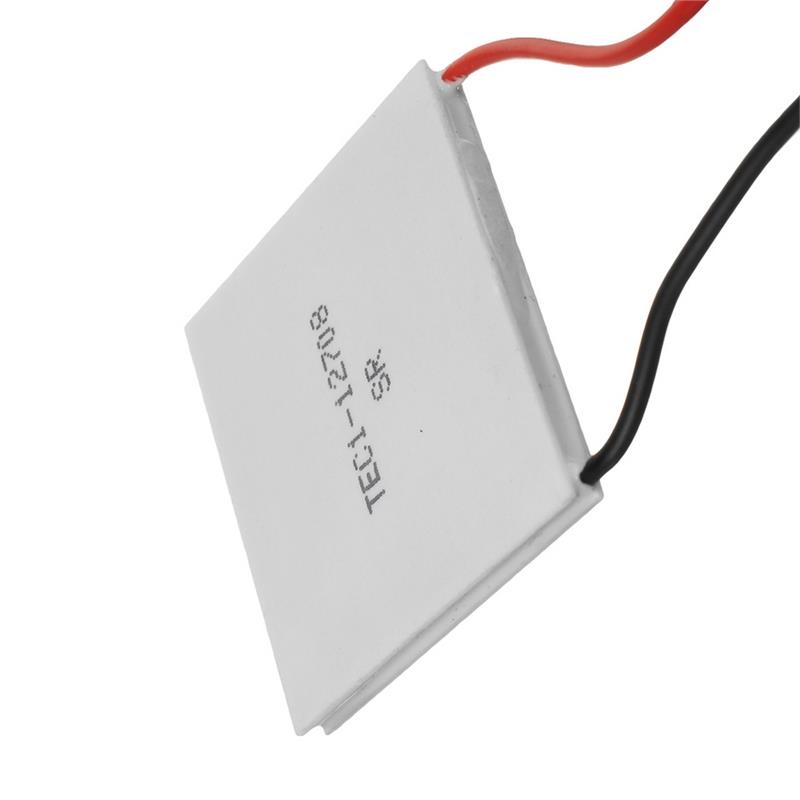

TEC1-12708 12V Heatsink Cooling Peltier TEC Semiconductor Thermoelectric Cooler 40mm*40mm*3.6mm
Description:
Can be used in refrigerator,Portable cooling car box,
Liquid Cooling,Temperature stabilizer etc.
No need to move internal parts when in transit
Solid state, vibration free, noise-free
Should use with a heat sink
Simple to install and operate
Long life time
Slim and compact
Parameter:
TEC1-12708 40mm*40mm
Chip Type:TEC1-12708
External dimensions:40 * 40 * 3.5mm
Internal resistance:1.5 ~ 1.8 ohm (23 + / – 1degree, environment temperature 1 KHZ Ac test)
The largest temperature difference:de1ta Tmax (Qc = 0) more than 67degree
Working current:Imax = 8 (rated voltage startup)
Rated voltage:DC12V (Vmax:15.5 V)
Cooling power:77 w Qcmax
The assembly pressure:85 n/cm2
Working conditions:temperature range and 55degree~ 83degree (high environmental temperature will directly affect the cooling efficiency)
Storage conditions:- 40 ~ 60degree
Package Included:
1 x TEC1-12708 Heatsink
Additional information
| Weight | 0.027 kg |
|---|
