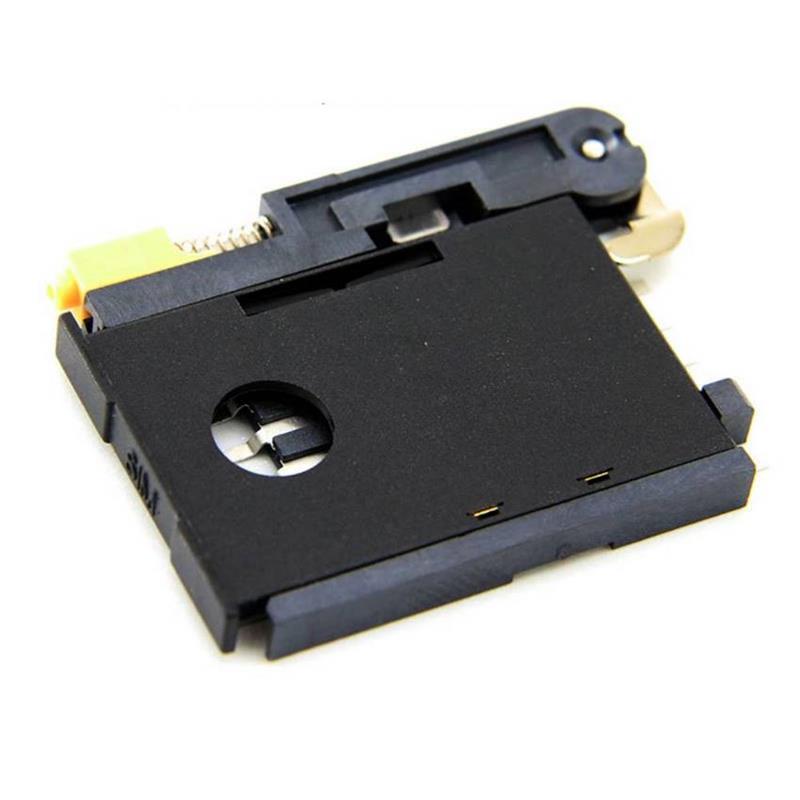

5PCS 91228-3001 6Pin Push Rod Drawer Type SIM Card Holder with Card Holder
Parameter:
Material
Terminal material:phosphor bronze
Surface treatment:touch electroplating gold, pin tin plating
Plastic material:Base:LCP, Cover:PC
Yellow button:LCP
Specifications
Plastic color:black
Rated current:0.5A, rated voltage:50V DC
Operating temperature:can be used in an environment of -25 degrees to 85 degrees
Performance
– Electrical performance
Contact impedance:tested under 1KHZ and small current, the maximum impedance is 40 micro ohms
Insulation resistance:Test with 100-250V DC voltage for 1 minute, with a minimum impedance of 100 meg ohms
Withstand voltage:add AC 250V between the terminal and the terminal, no breakdown
– Mechanical properties
Insertion and extraction force:insert and extract the fixture at a speed of 25 mm per minute, the maximum insertion and extraction force is 10N
Terminal strength:pull out the terminal horizontally, the minimum holding force of a single pin is 2N
Endurance test:The maximum contact resistance of the terminal is 100 m??, the plugging speed is 10 times per minute, and it can be plugged and unplugged 5000 times
Package Included:
5 x SIM Card Holder
Additional information
| Weight | 0.023 kg |
|---|
