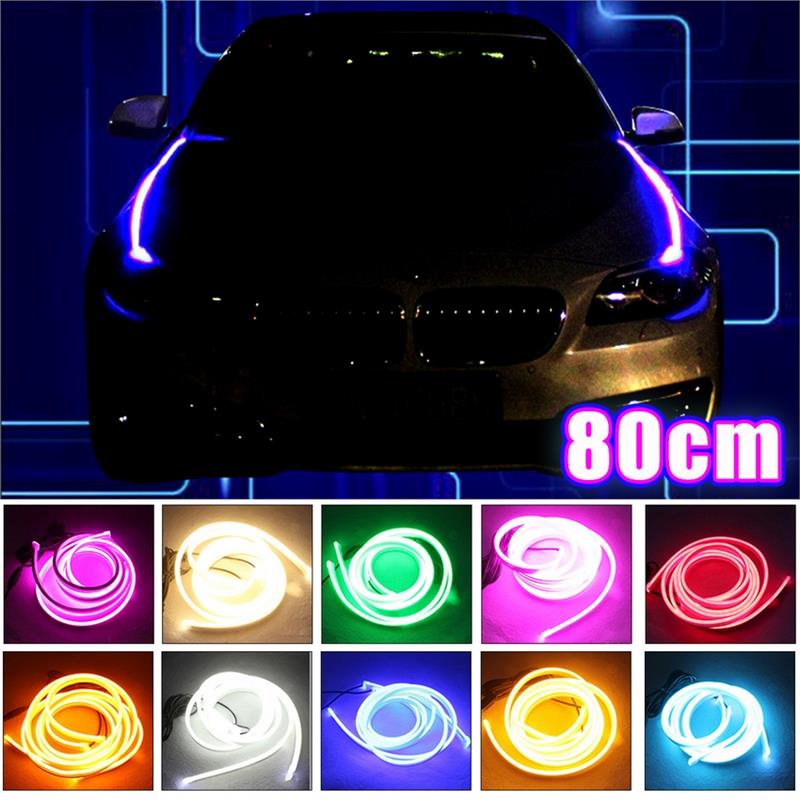

2PCS Hood LED Light Strip Grilles Under Spoiler Scanning LED Knight Rider
Description:
1.??Side Glowing??The side glow LED strip designed for the engine cover seam has better luminous effect than the front one.
2.??DIY Cut??Tailorable design for better fit.
3.??10-Colors??Purple/Golden/Blue/White/Orange/Red/Pinkish/Green/Warm White/Ice Blue 10-colors to choose from.
Feature:
1. Side glow LED with corresponding design for hood gap can give you better lighting effect.
2. IP67 waterproof and dustproof.
3. Metal circuit board light strip, not afraid of folding and bending.
4. Integrated with fuse, more safer.
5. The length of LED light strip can be cut by DIY without damaging,so as to adapt to various cars.
Specification:
Glow design | Side glow LED |
Light source | LED |
Light color | 10 colors to choose from |
Voltage | 12V |
Electric current | 2A |
Power | 12W |
Waterproof | IP67 |
Light strip thickness | 5mm |
Light strip length | 80cm |
Fitment:
Suitable for all 12V cars and pickups.
Installation Tips:

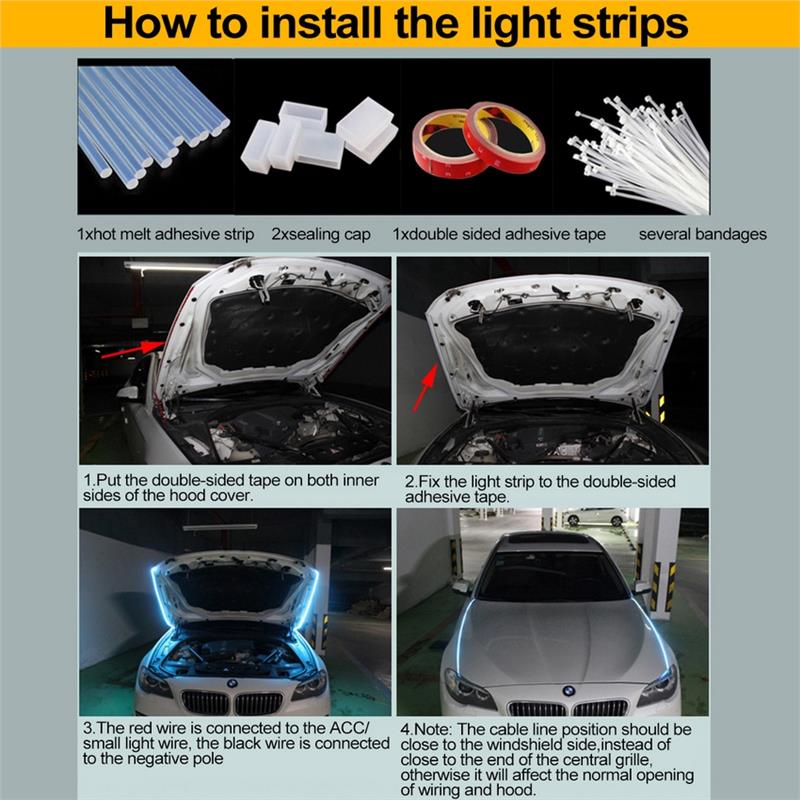

– How to install the light strips
1.Put the double-sided tape on both inner sides of the hood cover.
2.Fix the light strip to the double-sided adhesive tape.
3.Note:The cable line position should be close to the windshield side,instead of close to the end of the central grille, otherwise it will affect the normal opening of wiring and hood.
– How to connect wires
1.Black line connect to negative pole + Red line connect to ACC = Engine starts to light up.
2.Black line connect to negative pole + Red line connect to DRL= Turn on DRL to light up.
3.Black line connect to negative pole + Red line connect to Low beam lights = Turn on Low beam lights to light up.
4.Black line connect to negative pole + Red line connect to High lights = Turn on High lights to light up.
– How to do if LED light bar is too long
1.There is a cutting opening in every 5 intervals of the light strip, which can be cut according to the demand.
2.The hot-melt adhesive strip is heated and melted by the lighter;
3.Apply to the cut-out of the newly cut light strip and seal.
4.Finally, close the sealing cap.
Note:
1.Please allow 0.5-1 inch difference due to manual measurement. (1inch=2.54cm).
2.The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understand
Package Including:
2 X | LED light bar(with fuse) |
1 X | Hot melt adhesive strip |
2 X | Sealing cap |
1 X | Double sided adhesive tape |
Several Bandages |
Additional information
Weight | 0.34 kg |
---|---|
Color: No selection | Blue, Gold, Green, Ice Blue, Orange, Pink, Purple, Red, Warm White, White |
