LCD Display 12V/24V 10A/20A/30A Input Solar Charge Controller Auto Parameter Adjustable MPPT Solar Panel Regulator Purism
Specification:
Solar Controller:
| Size | 4.9×3.9×1.1in??12.5x10x3cm?? |
| USB output | 5V/2.5A |
| Standby current | <10mA |
| Rated Voltage | 12V/24V |
| Rated Current | 20A |
| Max.PV Voltage | 50V |
| Max.PV Input Power | 260W(12V)520W(24V) |
| Rated charging current | 10A/20A/30A |
| Rated discharge current | 10A/20A/30A |
| Working temperature | -35 to +60 degrees |
| Ncrease charging voltag | 14.4V (sealed type) |
| Floating charge voltage | 13.7V (default, adjustable) |
| Discharge cut-off voltage | 10.7V (default, adjustable) |
| Discharge recovery voltage | 12.6V (default, adjustable) |

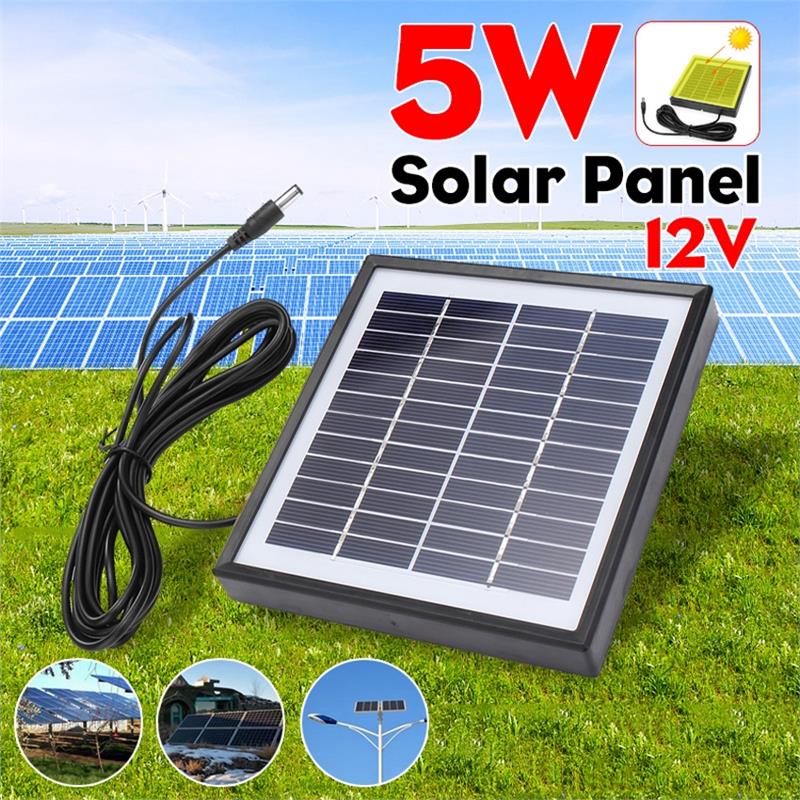

Solar Panel:
| Material | Class A polysilicon solar panel |
| Power | 5W |
| Working current | 0-166MA |
| Short circuit current | 220MA |
| Working voltage | 12V |
| Open circuit voltage | 13.5V |
| Size | 140*130*18mm |
| DC interface | 5.5*2.1mm |
| Cable length | 3m approx. |
Features:
-Industrial-grade master chip, sampling accuracy, temperature, charging current, Discharge current accurate real-time display, power generation at a glance.
– Automatic focusing ??tracking charging, high charging efficiency, non-stop detection
During charging, bidirectional focusing tracking.
-Large-screen LCD display, adjustable charging and discharging parameters. When the output is off, the time.Can be adjusted, which is more convenient.
-Acomplete three-phase charge management, effectively protect the battery, the battery is more Durable.
-Built-in overheating, overcurrent short circuit, open circuit protection, reverse connection.Protection,when the fault is eliminated, the controller automatically recovers, does not damage
The device.
-The Solar Panel is suitable for a variety of low-power appliances:emergency lights, advertising lights, traffic lights, household lights, electric fans, surveillance cameras, solar water pumps, solar street lights, small solar systems, etc.
Packing List:
1 x Solar Panel Battery Regulator Charge Controller
1 x User Manual
or
1 x Solar Panel Battery Regulator Charge Controller
1 x User Manual
1 x Solar Panel
More Details:
Additional information
| Weight | 0.2 kg |
|---|---|
| Current: No selection | 10A, 10A+Panel, 20A, 20A+Panel, 30A, 30A+Panel |
