IPC9800Plus+ 7 Inch IP CCTV Tester Monitor Analog CVBS Camera Tester H.265 4K Video Testing Support ONVIF WIFI POE 12V Output

IPC9800Plus+ 7 Inch IP CCTV Tester Monitor Analog CVBS Camera Tester H.265 4K Video Testing Support ONVIF WIFI POE 12V Output
Note:IPC9800Plus+ does not support AHD CVI TVI. only support HDMI output.
If you need other CCTV Tester Monitor ??Click ID:1988242 /span>1988243 /span>1988249 /span>1988486
Description:
IPC-9800 Plus
Camera test:
7 inch IPS touch screen, 1920*1200 resolution
H.265 & H .264 IP, 4K video display via mainstream
Rapid ONVIF, Auto log in & display image, create testing report
AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
CVBS camera test and PTZ control
IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera),DH test tool (Dahua camera)
Video level meter, peak video signal level, SYNC signal level, Colorful bar chroma level measurement*
DC12V/3A power output, camera can be powered from DC 12Votage
48V PoE power output power
Rapid video, just by one key to detect all network cameras and auto display

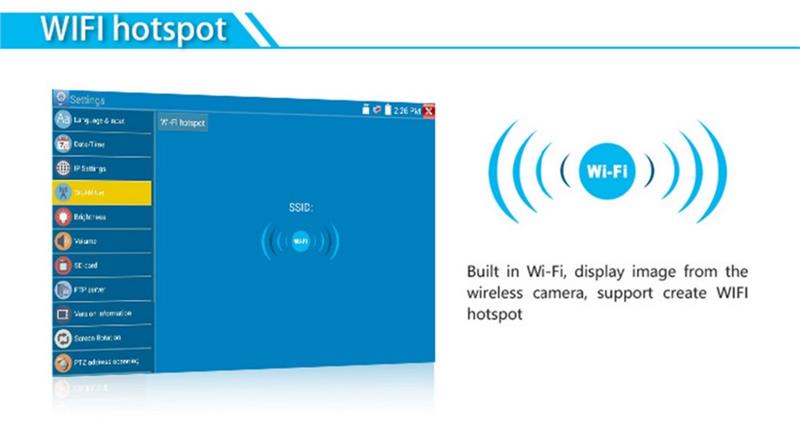

Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
CVBS loop test, the tester send and receive colorful bar generator signal, to check BNC cable
Enhanced colorful bar generator, PAL/NTSC multi-system colorful bar video generator
Cable test:
nbsp;Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized
RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
Other functions:
Network tool:Ping, IP scan, Port Flash, DHCP server, Trace Route
POE & power information, DC12V& PoE power and voltage output /input measurement
Tester Play:Tester, android version mobile phone and PC display at the same time
Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, etc
Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
Self -update software, you can install apps with android version
Media player, 4K video files and MKV/MP4 media files play
Quick office, quick office app (support excel, word, ppt format) doc. editable
8GB SD card including
Display its genuine resolution of the IP camera images
Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
7.4 V /7500mAh Lithium Ion Polymer Battery, after 5~6 hours charging , working time lasts 10 hours
Package included:
1 x Host
1 x Tool bag
1 x Network cable test box
1 x Holding rope
1 x Original charger
1 x Lithium battery
1 x Power output conversion line
1 x RS485 control line
1 x Audio test line
1 x BNC video cable
Details picture:
